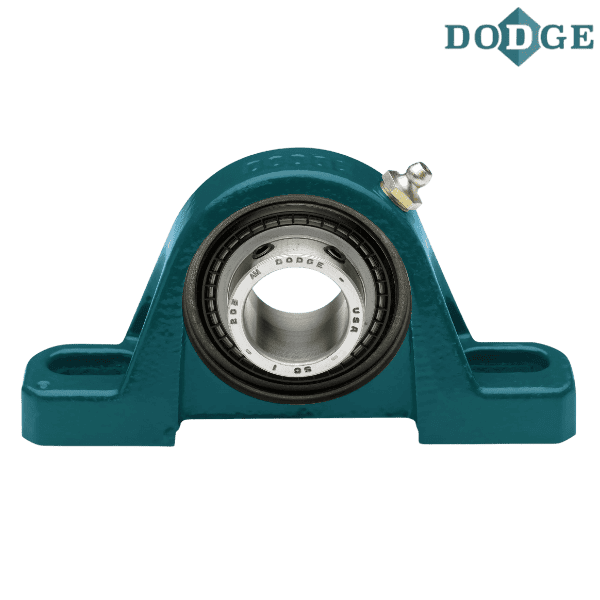

057800 DODGE - P2B-SC-60M-HT

Brand - DODGE
Item Number - 057800 DODGE - P2B-SC-60M-HT
Category - High Temperature Setscrew Ball Bearing (Pillow Blocks)
Series - 212
Description - P2B-SC-60M-HT
Shaft Size (mm) - 60
Weight (kg) - 4.2

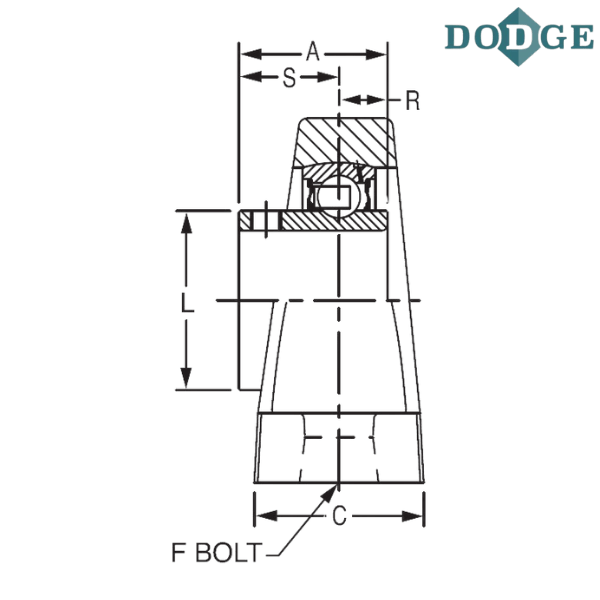

Length Through Bore (A) mm - 58.7

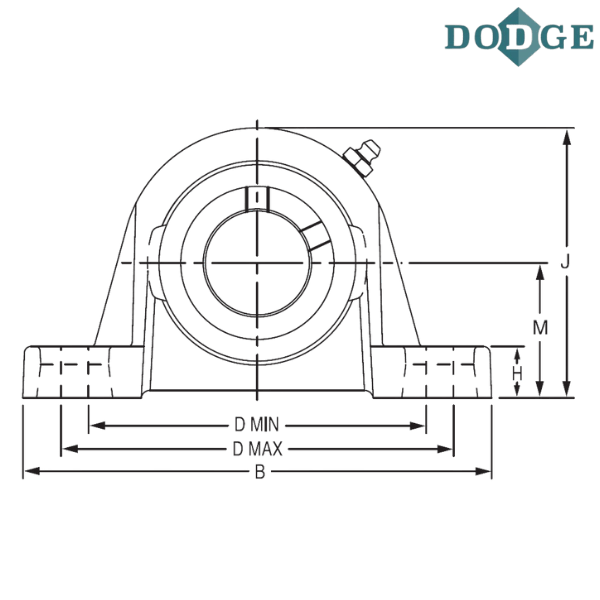

Overall Length (B) mm - 241.3
Width (C) mm - 60.2
Bolt to Bolt Minimum Distance (D min) mm - 174.8
Bolt to Bolt Maximum Distance (D max) mm - 201.7
F-Bolt Diameter - M16
G (mm) - 30.7
H (mm) - 22.4
Overall Height (J) mm - 137.2
L (mm) - 75.4
Base to Center Height (M) mm - 69.9
R (mm) - 22.9
S (mm) - 35.8

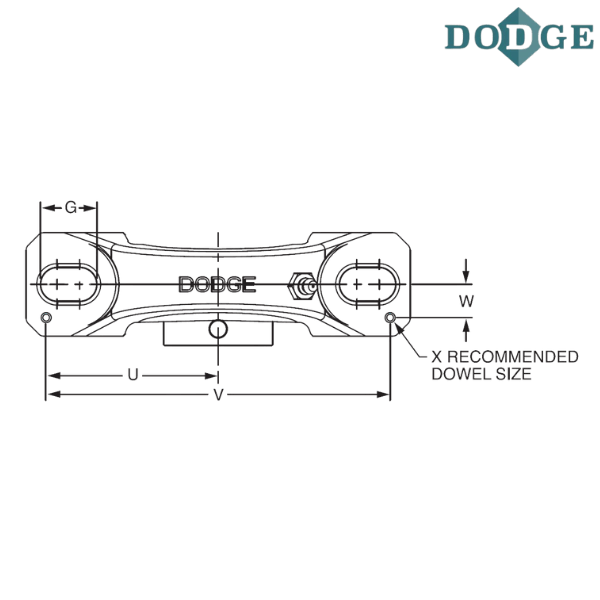

U (mm) - 108
V (mm) - 215.9
W (mm) - 22.4
X (mm) - 3

Notes :
P2B - 2-bolt base pillow block
SC - Wide inner ring, normal duty, 65° setscrew locking
M - Metric
HT - High Temperature

Lubricants - Lithium Complex Base Lubricant
Seals - The PROGUARD PLUS Seal
High Temperature - 225°F(108°C) to 400°F(205°C)
Air Handling - Supports for SC and SCM Air Handling Pillow Blocks and Flange Bearing
Housing Material - Stainless Steel and Polymer Coatings conform to U.S.D.A. and F.D.A. requirement.

** Images are for representation purposes only
