059758 DODGE - WSTU-DLM-215

Brand - DODGE
Item Number - 059758 DODGE - WSTU-DLM-215
Category - D-LOK® Ball Bearings (DLM Medium Duty Wide Slot Take-Up Bearings)
Series - 216
Shaft Size (inch) - 2.9375
Description - WSTU-DLM-215
Weight (lbs) - 22.9
Take- Up Frame Size - WS608

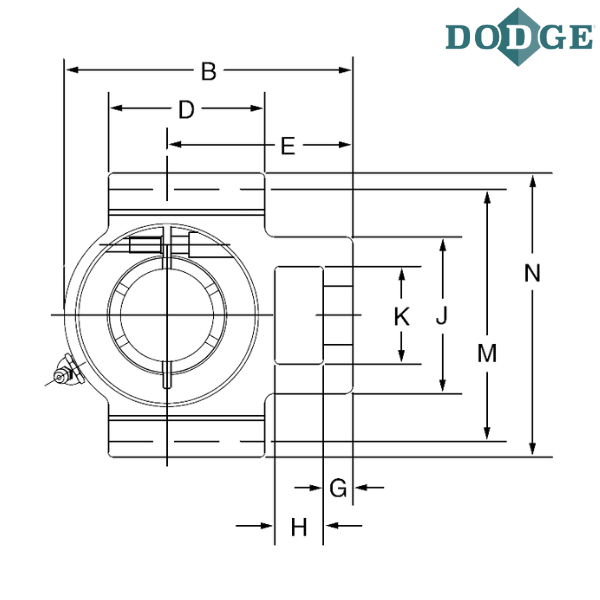

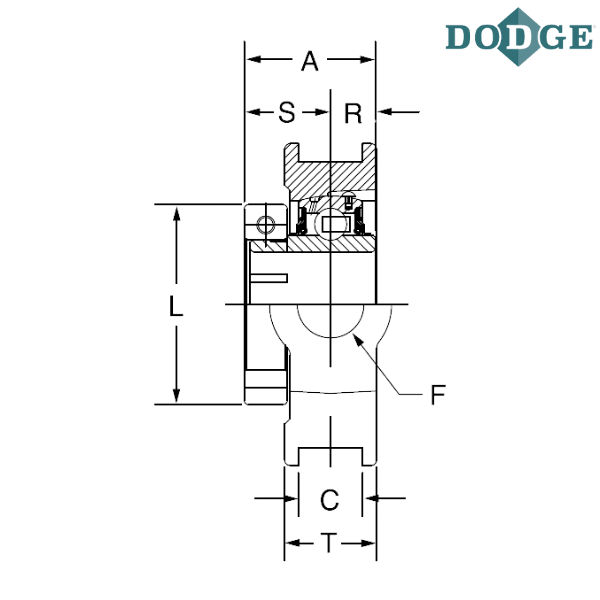

Length Through Bore (A) inch - 2.62
Length Through Bore (A) mm - 66.5
Overall Length (B) inch - 9.13
Overall Length (B) mm - 231.9
C (inch) - 1.063
C (mm) - 27
D (inch) - 4.75
D (mm) - 120.7
E (inch) - 2.38
E (mm) - 60.5
F (Screw Diameter) inch - 1.5
F (Screw Diameter) mm - 38.1
G (inch) - 0.81
G (mm) - 20.6
H (inch) - 1.25
H (mm) - 31.8
J (inch) - 4.38
J (mm) - 111.3
K (inch) - 2.75
K (mm) - 69.9
L (inch) - 4.99
L (mm) - 126.7
M (inch) - 6.485/6.515
M (mm) - 164.72/165.48
Overall Width (N) inch - 7.25
Overall Width (N) mm - 184.2
R (inch) - 0.88
R (mm) - 22.4
S (inch) - 1.74
S (mm) - 44.2
T (inch) - 2.75
T (mm) - 69.9
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
DLM - Wide inner ring, medium duty, concentric clamp collar

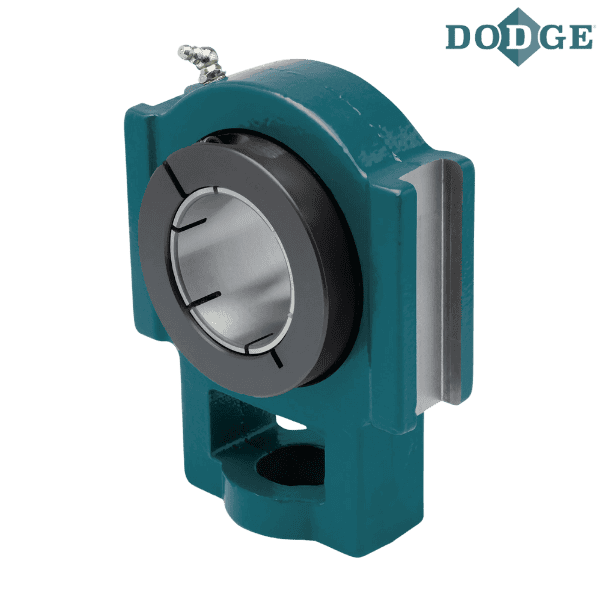

** Images are for representation purposes only
