Description
Brand - DODGE
Item Number - 066534 DODGE - S1U-SD-615
Category - Special Duty S-1 Units (Expansion)
Shaft Size (inch) - 6.9375
Part Name - S1U-SD-615
Approximate Weight (lbs) - 560
Length Through Bore (A) inch - 13.5
Overall Width (B) inch - 9.31
F (inch) - 9.81
L (inch) - 11
R (inch) - 6.75
S (inch) - 6.75
Notes :
S1U - S-1 unit, Cast Iron
SD - Special Duty

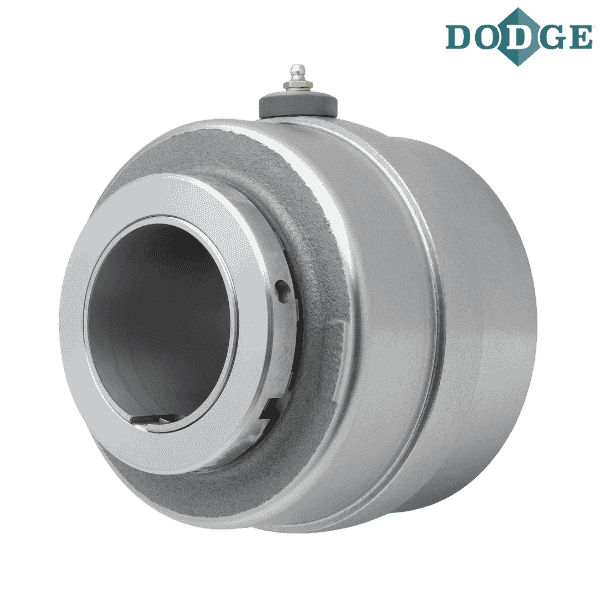

** Images are for representation purposes only
