Description
Brand - DODGE

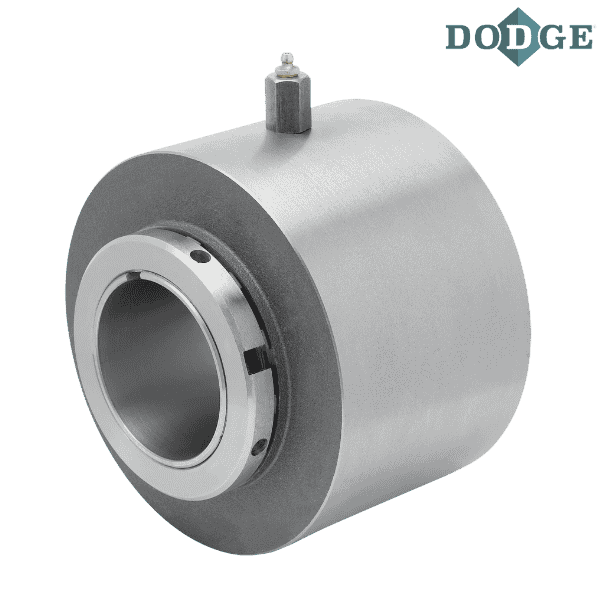

Item Number - 066588 DODGE - B1U-SD-408
Category - Special Duty B-1 Units (Customer Supplied Housing)
Shaft Size (inch) - 4.5
Part Name - B1U-SD-408
Approximate Weight (lbs) - 116

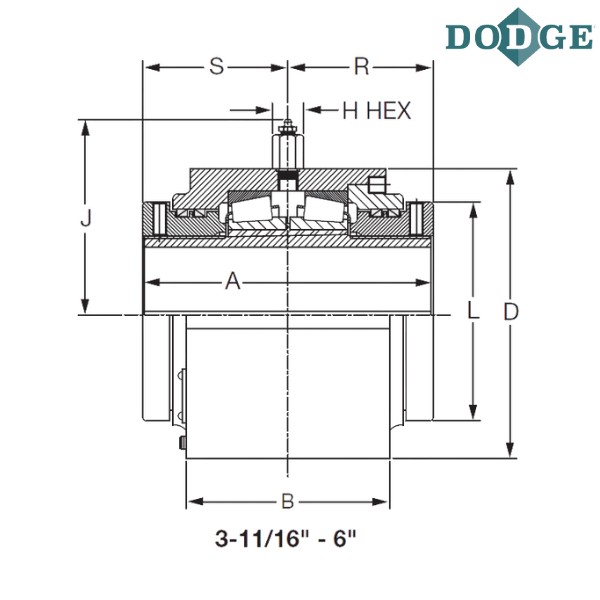

Length Through Bore (A) inch - 9.5
Overall Width (B) inch - 6.63
D (inch) - 10.500 (+.000 -.002”)
Hex (H) inch - 0.75
J (inch) - 6.75
L (inch) - 7.25
R (inch) - 4.75
S (inch) - 4.75
Notes :
B1U - B-1 Unit, Cast Iron
SD - Special Duty
** Images are for representation purposes only
