Description
Brand - DODGE
Item Number - 067135 DODGE - HS2-HC-569
Category - Special Duty Hinged Cap Pillow Block - Inch (Pillow Block Housing Only - Non-Expansion)
Shaft Size Range Symbol - 207
Part Name - HS2-HC-569
Approximate Weight (lbs) - 40
Compatiable Part Numbers of Pillow Block Assembly (Non-Expansion) - 067044
Compatiable Part Names of Pillow Block Assembly (Non-Expansion) - P2B-HC-207

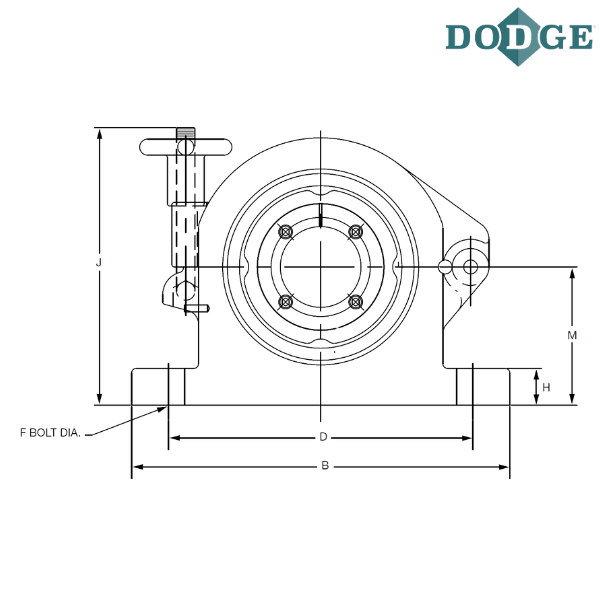

Overall Length (B) inch - 10.25
D (inch) - 8.25
F-Bolt Diameter (inch) - 0.75
H (inch) - 1.00
Overall Height (J) inch - 9.63
Base to Center Height (M) inch - 4.50

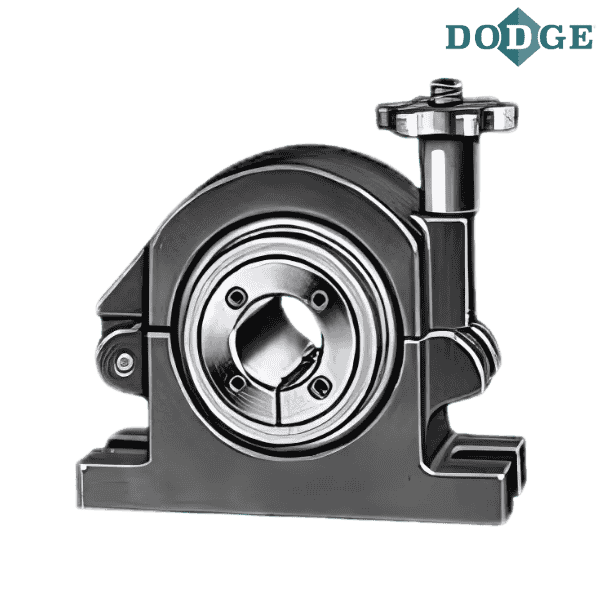

** Images are for representation purposes only
