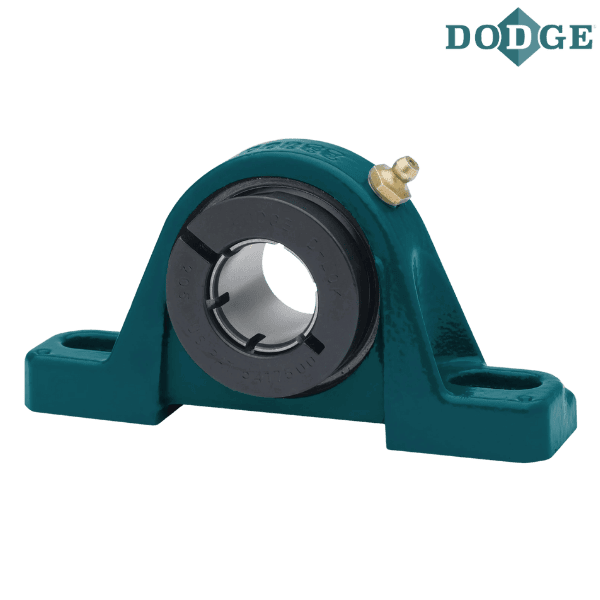

068373 DODGE - P2B-DLMB-111

Brand - DODGE
Item Number - 068373 DODGE - P2B-DLMB-111
Category - D-LOK® Ball Bearings (DLM Medium Duty Pillow Blocks)
Series - 210 (DLMB)
Shaft Size (inch) - 1.6875
Description - P2B-DLMB-111
Weight (lbs) - 12.3

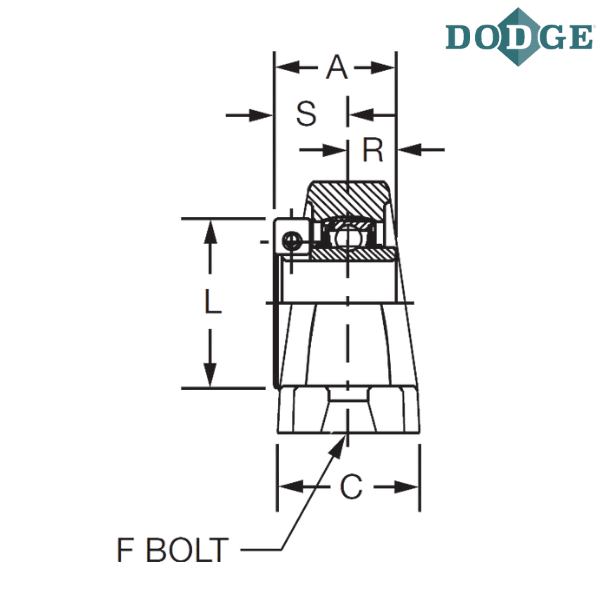

Length Through Bore (A) inch - 2.01
A (mm) - 51.1

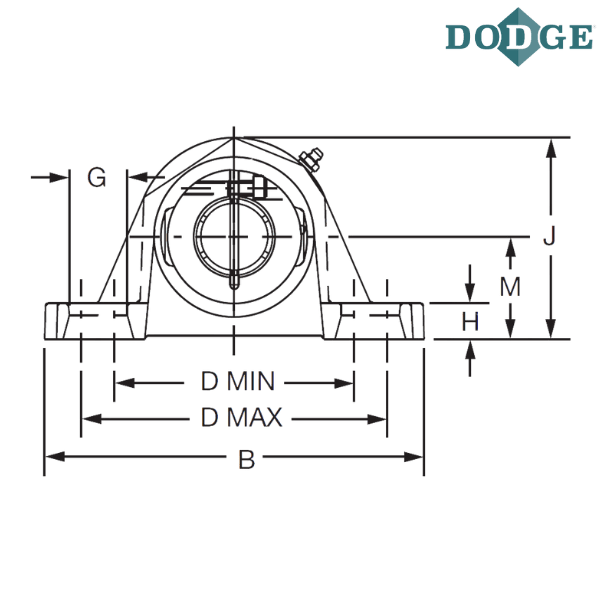

Overall Length (B) inch - 8.12
B (mm) - 206.2
Width (C) inch - 2.24
Width (C) mm - 56.9
Bolt to Bolt Minimum Distance (D min) inch - 6
Bolt to Bolt Minimum Distance (D min) mm - 152.4
Bolt to Bolt Maximum Distance (D max) inch - 6.68
Bolt to Bolt Maximum Distance (D max) mm - 169.7
F-Bolt Diameter (inch) - 0.625
Bolt Diameter (F) mm - M16
G (inch) - 1.02
G (mm) - 25.9
H (inch) - 0.75
H (mm) - 19.1
Overall Height (J) inch - 4.53
Overall Height (J) mm - 115.1
L (inch) - 3.24
L (mm) - 82.3
Base to Center Height (M) inch - 2.25
M (mm) - 57.2
R (inch) - 0.75
R (mm) - 19.1
S (inch) - 1.26
S (mm) - 32

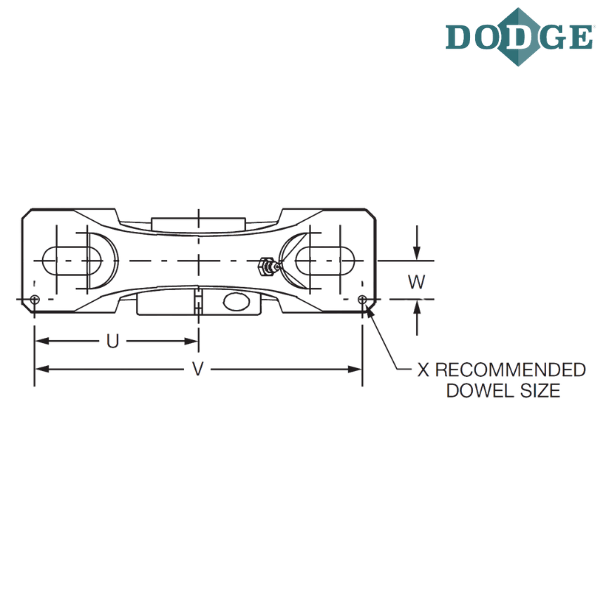

U (inch) - 3.69
U (mm) - 93.7
V (inch) - 7.38
V (mm) - 187.5
W (inch) - 0.81
W (mm) - 20.6
X (inch) - 0.12
X (mm) - 3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow block, 2-bolt base
DLM - Wide inner ring, medium duty, concentric clamp collar
B - Low backing height pillow block

** Images are for representation purposes only
