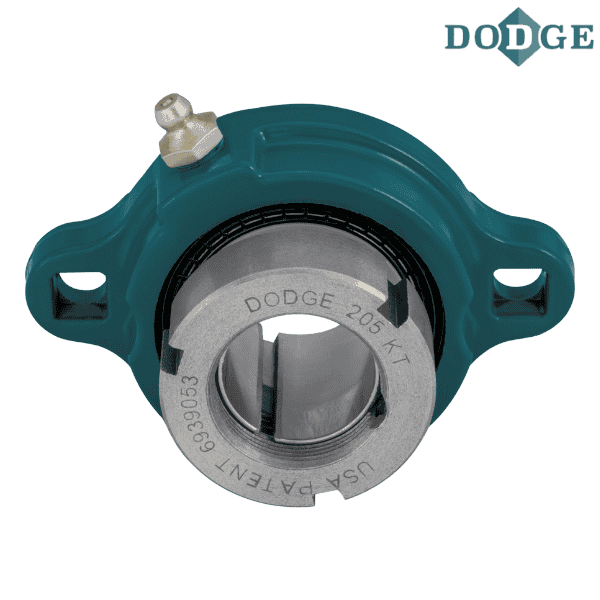

068685 DODGE - LFT-GT-25M

Brand - DODGE
Item Number - 068685 DODGE - LFT-GT-25M
Category - GRIP TIGHT Adapter Ball Bearings (GT LFT Normal Duty 2-Bolt Flange Bearings)
Series - 205
Shaft Size (mm) - 25
Description - LFT-GT-25M
Part Number (Unit without Adapter Sleeve and Nut) - 136357
Description (Unit without Adapter Sleeve and Nut) - LFT-GT-05
Part Number (Adapter and Nut Assembly) - 136554
Description (Adapter and Nut Assembly) - AN-GT-05-25M-D
Weight (kg) - 0.43

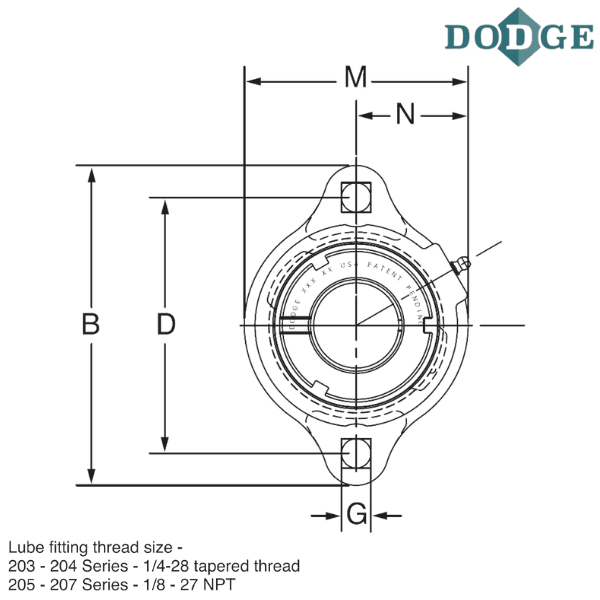

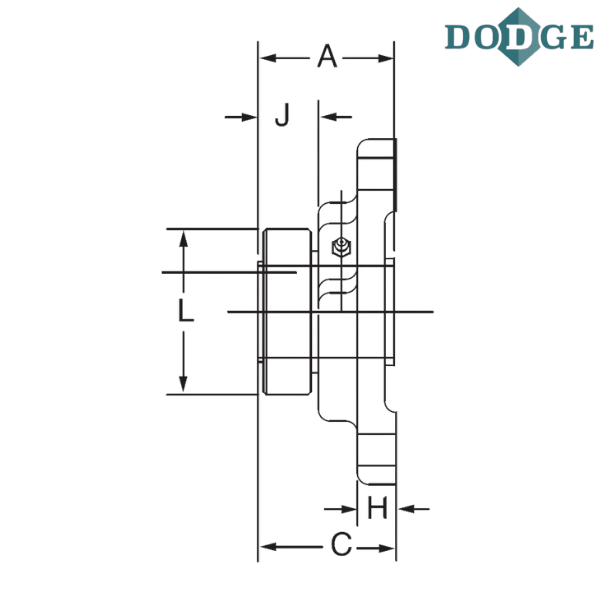

Length Through Bore (A) mm - 37.1
Overall Length (B) mm - 95.3
Thickness (C) mm - 37.1
Bolt Center to Center Length (D) mm - 76.2
G (mm) - 8.6
H (mm) - 10.7
J (mm) - 14.7
L (mm) - 45.7
Overall Width (M) mm - 66.8
N (mm) - 36.6
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
LFT - 2-bolt light duty flange
GT - Wide inner ring, normal duty, thin wall adapter locking
M - Metric

** Images are for representation purposes only
