068878 DODGE - LFT-GT-20M

Brand - DODGE
Item Number - 068878 DODGE - LFT-GT-20M
Category - GRIP TIGHT Adapter Ball Bearings (GT LFT Normal Duty 2-Bolt Flange Bearings)
Series - 204
Shaft Size (mm) - 20
Description - LFT-GT-20M
Part Number (Unit without Adapter Sleeve and Nut) - 136356
Description (Unit without Adapter Sleeve and Nut) - LFT-GT-04
Part Number (Adapter and Nut Assembly) - 136553
Description (Adapter and Nut Assembly) - AN-GT-04-20M-D
Weight (kg) - 0.4

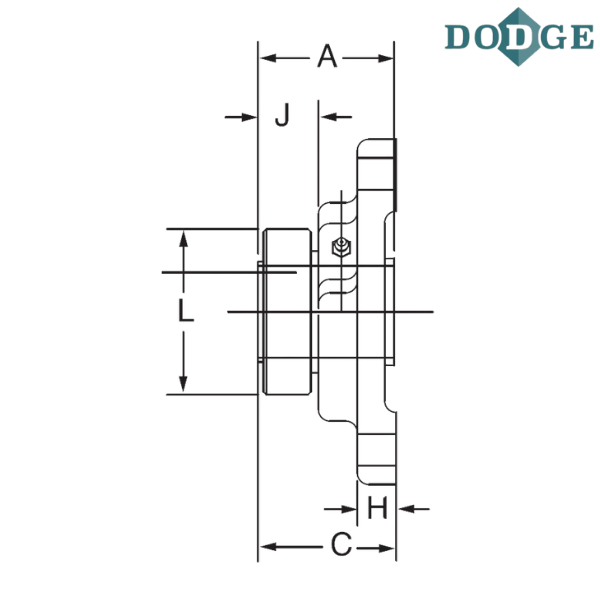

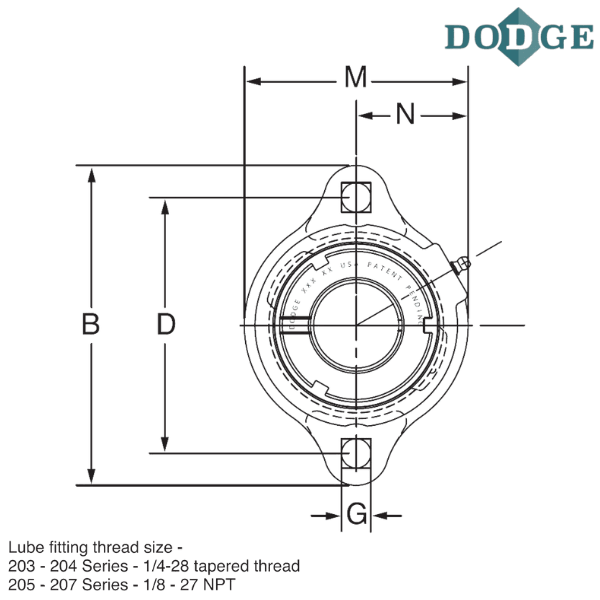

Length Through Bore (A) mm - 37.6
Overall Length (B) mm - 90.4
Thickness (C) mm - 38.4
Bolt Center to Center Length (D) mm - 71.4
G (mm) - 8.6
H (mm) - 10.7
J (mm) - 16.8
L (mm) - 38.1
Overall Width (M) mm - 60.5
N (mm) - 34
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
LFT - 2-bolt light duty flange
GT - Wide inner ring, normal duty, thin wall adapter locking
M - Metric

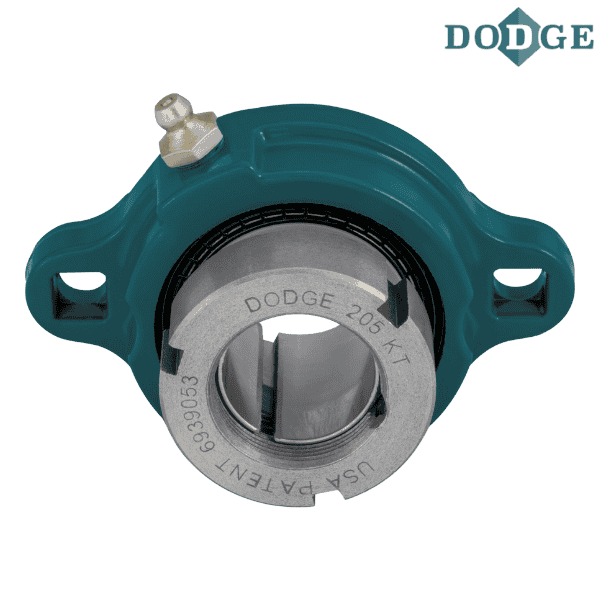

** Images are for representation purposes only
