Description
Brand - DODGE
Item Number - 069039 DODGE - B1U-C-208
Category - Type C Units - Inch (B-1 Units)
Shaft Size (inch) - 2.5
Part Name - B1U-C-208
Approximate Weight (lbs) - 35

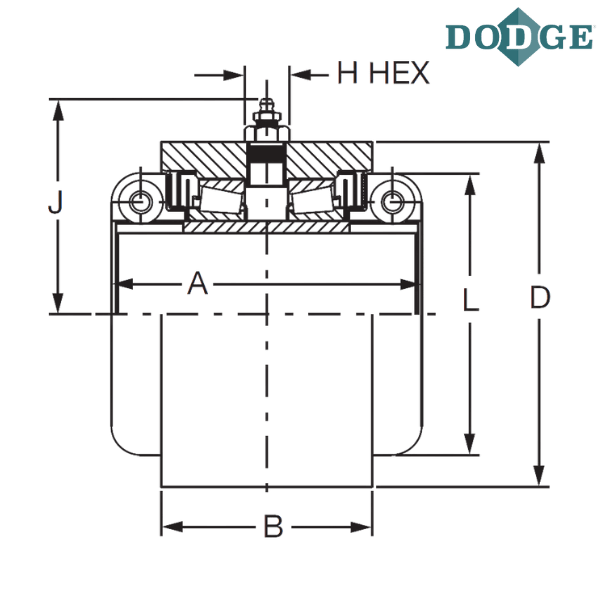

Length Through Bore (A) inch - 6.5
B (inch) - 4.44
D** (inch) - 6.5
Hex (H) inch - 0.75
J (inch) - 4.63
L (inch) - 5.44
Maximum Speed - Available on Request
Notes :
B1U - B-1 Unit, Cast Iron
C - Type C
B1 Unit - Used in Customer Manufactured Housings
** + .000 - .002
*** Images are for representation purposes only
