Description
Brand - DODGE
Item Number - 070328 DODGE - P2B-S2-207L
Category - 2-Bolt Base S-2000 Pillow Block - Inch in Labyrinth Seal (Non-Expansion)
Bearing Series - 22213
Shaft Size (inch) - 2.4375
Part Name - P2B-S2-207L

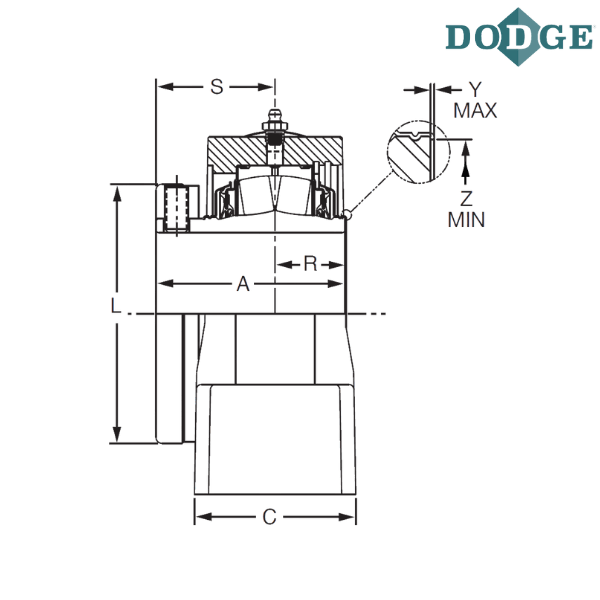

Length Through Bore (A) inch - 3.2
Overall Length (B) inch - 9.25
C (inch) - 2.81
Bolt to Bolt Minimum Distance (D min) inch - 6.94
Bolt to Bolt Maximum Distance (D max) inch - 7.31
F-Bolt Diameter (inch) - 0.625
G (inch) - 0.95
H (inch) - 1.63
Overall Height (J) inch - 5.59
L (inch) - 4.06
Base to Center Height (M) inch - 2.75
R (inch) - 1.13
S (inch) - 2.08
Y (inch) - 0.025
Z (inch) - 2.95
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - Pillow Block 2-Bolt Base, Cast Iron
S2 - S-2000
L - Labyrinth Metallic Seal
** Images are for representation purposes only
