Description
Brand - DODGE
Item Number - 070438 DODGE - F3R-S2-108R
Category - S-2000 Flange Bearing - Round in Trident Seal (Non-Expansion)
Bearing Series - 22208
Shaft Size (inch) - 1.5
Part Name - F3R-S2-108R

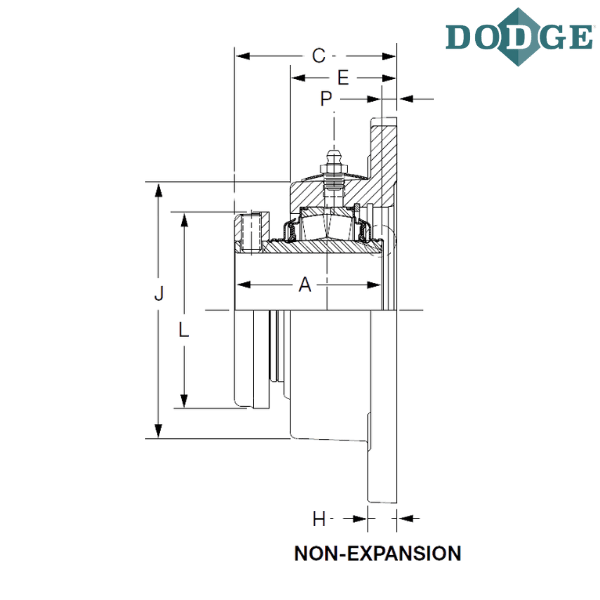

Length Through Bore (A) inch - 2.53
Overall Length (B) inch - 5.88
Thickness (C) inch - 2.77
Bolt Center to Center Length (D) inch - 3.53
DD (inch) - 5
E (inch) - 1.8
F-Bolt Diameter (inch) - 0.5*
H (inch) - 0.5
J (inch) - 3.84
L (inch) - 2.75
P (inch) - 0.23
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F3R - Flange Bearing 3-Bolt, Cast Iron, Round
S2 - S-2000
R - TRIDENT Triple Lip Rubbing Seal
* 3 Equally spaced bolt holes
** Images are for representation purposes only
