070503 DODGE - F4R-S2-211L

Brand - DODGE
Item Number - 070503 DODGE - F4R-S2-211L
Category - S-2000 Flange Bearing - Round in Labyrinth Seal (Non-Expansion)
Bearing Series - 22215
Shaft Size (inch) - 2.6875
Part Name - F4R-S2-211L

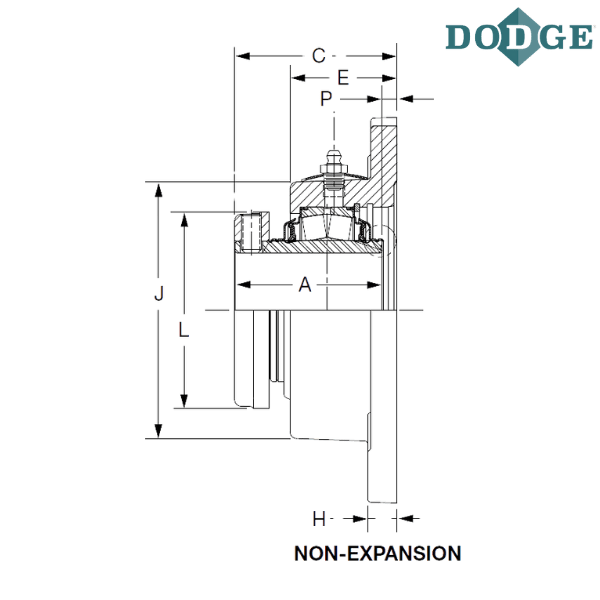

Length Through Bore (A) inch - 3.59
Overall Length (B) inch - 9.25
Thickness (C) inch - 3.89
Bolt Center to Center Length (D) inch - 5.56
DD (inch) - 7.88
E (inch) - 2.39
F-Bolt Diameter (inch) - 0.75**
H (inch) - 0.88
J (inch) - 6.36
L (inch) - 4.7
P (inch) - 0.3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4R - Flange Bearing 4-Bolt, Cast Iron, Round
S2 - S-2000
L - Labyrinth Metallic Seal

** 4 Equally spaced bolt holes

*** Images are for representation purposes only
