070529 DODGE - F4R-S2-115LE

Brand - DODGE
Item Number - 070529 DODGE - F4R-S2-115LE
Category - S-2000 Flange Bearing - Round in Labyrinth Seal (Expansion)
Bearing Series - 22210
Shaft Size (inch) - 1.9375
Part Name - F4R-S2-115LE
A (inch) - 2.84
B (inch) - 6.69
C (inch) - 3.14
D (inch) - 4.06
DD (inch) - 5.75
E (inch) - 1.92
Bolt Diameter (F) inch - 0.5**
H (inch) - 0.56
J (inch) - 4.59
L (inch) - 3.44
Total Expansion (X) inch - 0.25
Y (inch) - 0.02
Z (inch) - 2.3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4R - Flange Bearing 4-Bolt, Cast Iron, Round
S2 - S-2000
L - Labyrinth Metallic Seal
E - Expansion Type Bearing

** 4 Equally spaced bolt holes

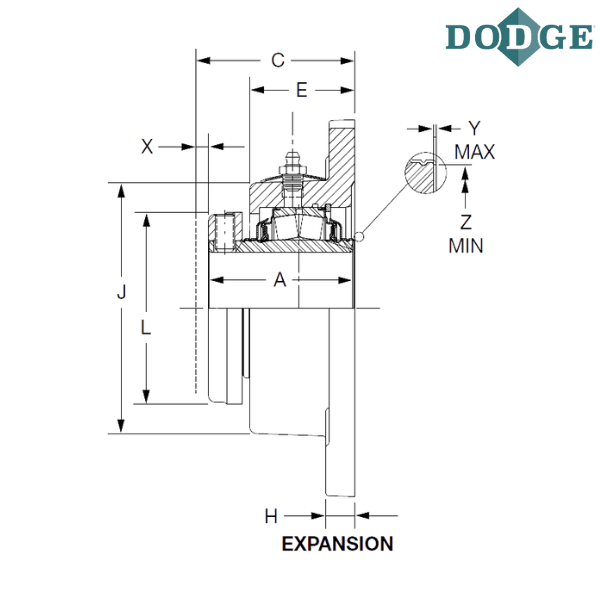

*** Images are for representation purposes only
