070537 DODGE - F4R-S2-300LE

Brand - DODGE
Item Number - 070537 DODGE - F4R-S2-300LE
Category - S-2000 Flange Bearing - Round in Labyrinth Seal (Expansion)
Bearing Series - 22215
Shaft Size (inch) - 3
Part Name - F4R-S2-300LE

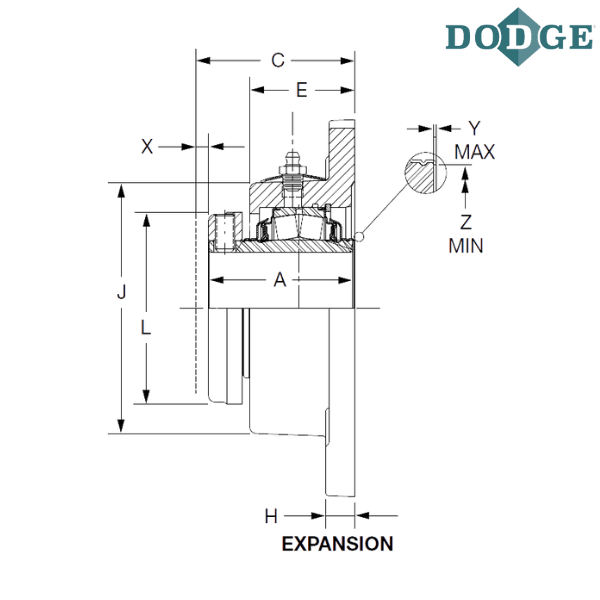

A (inch) - 3.59
B (inch) - 9.25
C (inch) - 3.89
D (inch) - 5.56
DD (inch) - 7.88
E (inch) - 2.39
Bolt Diameter (F) inch - 0.75**
H (inch) - 0.88
J (inch) - 6.36
L (inch) - 4.7
Total Expansion (X) inch - 0.25
Y (inch) - 0.025
Z (inch) - 3.47
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4R - Flange Bearing 4-Bolt, Cast Iron, Round
S2 - S-2000
L - Labyrinth Metallic Seal
E - Expansion Type Bearing

** 4 Equally spaced bolt holes

*** Images are for representation purposes only
