070542 DODGE - F4S-S2-107R

Brand - DODGE
Item Number - 070542 DODGE - F4S-S2-107R
Category - S-2000 Flange Bearing - Square in Trident Seal (Non-Expansion)
Bearing Series - 22208
Shaft Size (inch) - 1.4375
Part Name - F4S-S2-107R

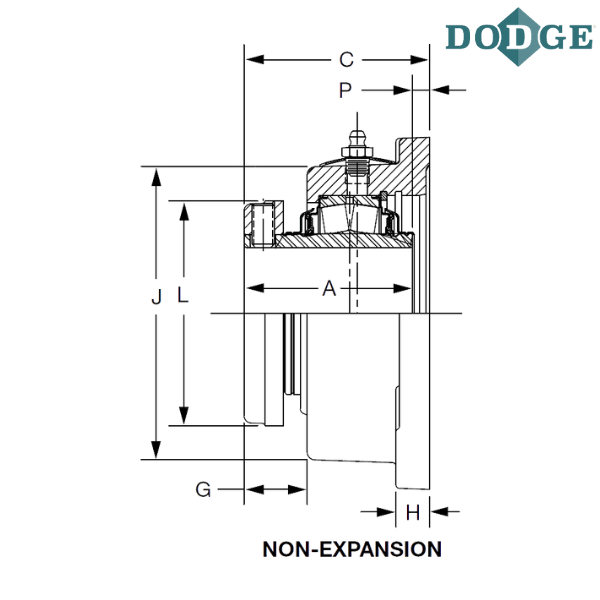

Length Through Bore (A) inch - 2.53
Overall Length (B) inch - 4.75
Thickness (C) inch - 2.77
Bolt Center to Center Length (D) inch - 3.53
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.99
H (inch) - 0.5
J (inch) - 3.81
K (inch) - 5
L (inch) - 2.75
N (inch) - 2.48
P (inch) - 0.23
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4S - Flange Bearing 4-Bolt, Cast Iron, Square
S2 - S-2000
R - TRIDENT Triple Lip Rubbing Seal

** Images are for representation purposes only
