070551 DODGE - F4S-S2-207R

Brand - DODGE
Item Number - 070551 DODGE - F4S-S2-207R
Category - S-2000 Flange Bearing - Square in Trident Seal (Non-Expansion)
Bearing Series - 22213
Shaft Size (inch) - 2.4375
Part Name - F4S-S2-207R

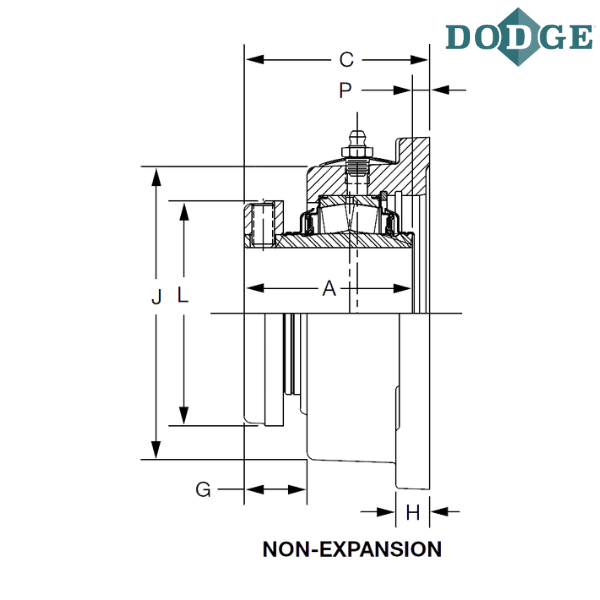

Length Through Bore (A) inch - 3.2
Overall Length (B) inch - 6.13
Thickness (C) inch - 3.52
Bolt Center to Center Length (D) inch - 4.78
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.14
H (inch) - 0.64
J (inch) - 5.63
K (inch) - 6.75
L (inch) - 4.06
N (inch) - 3.41
P (inch) - 0.31
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4S - Flange Bearing 4-Bolt, Cast Iron, Square
S2 - S-2000
R - TRIDENT Triple Lip Rubbing Seal

** Images are for representation purposes only
