070553 DODGE - F4S-S2-211R

Brand - DODGE
Item Number - 070553 DODGE - F4S-S2-211R
Category - S-2000 Flange Bearing - Square in Trident Seal (Non-Expansion)
Bearing Series - 22215
Shaft Size (inch) - 2.6875
Part Name - F4S-S2-211R

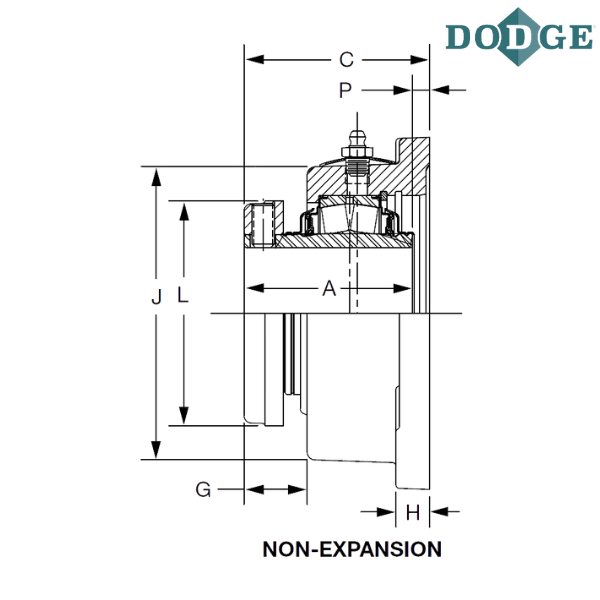

Length Through Bore (A) inch - 3.59
Overall Length (B) inch - 7.19
Thickness (C) inch - 3.91
Bolt Center to Center Length (D) inch - 5.56
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.52
H (inch) - 0.75
J (inch) - 6.5
K (inch) - 7.88
L (inch) - 4.7
N (inch) - 3.84
P (inch) - 0.31
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4S - Flange Bearing 4-Bolt, Cast Iron, Square
S2 - S-2000
R - TRIDENT Triple Lip Rubbing Seal

** Images are for representation purposes only
