070559 DODGE - F4S-S2-315R

Brand - DODGE
Item Number - 070559 DODGE - F4S-S2-315R
Category - S-2000 Flange Bearing - Square in Trident Seal (Non-Expansion)
Bearing Series - 22220
Shaft Size (inch) - 3.9375
Part Name - F4S-S2-315R

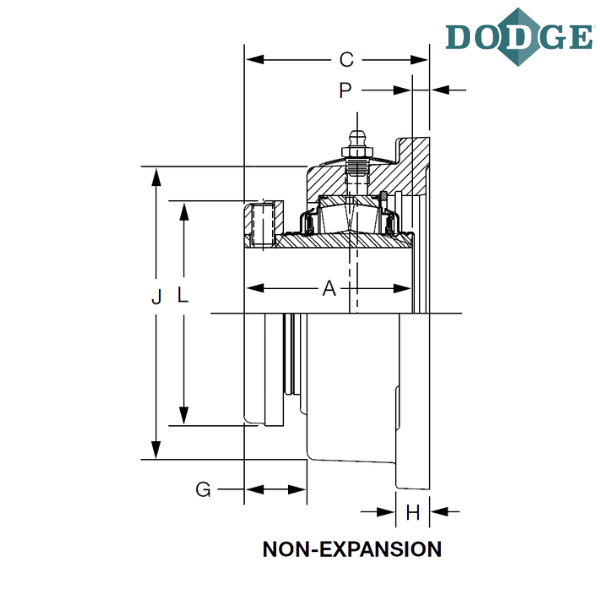

Length Through Bore (A) inch - 4.47
Overall Length (B) inch - 9.25
Thickness (C) inch - 4.84
Bolt Center to Center Length (D) inch - 7.61
F-Bolt Diameter (inch) - 0.875
G (inch) - 1.55
H (inch) - 1.06
J (inch) - 8.22
K (inch) - 10.75
L (inch) - 6
N (inch) - 4.7
P (inch) - 0.38
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4S - Flange Bearing 4-Bolt, Cast Iron, Square
S2 - S-2000
R - TRIDENT Triple Lip Rubbing Seal

** Images are for representation purposes only
