070569 DODGE - F4S-S2-112RE

Brand - DODGE
Item Number - 070569 DODGE - F4S-S2-112RE
Category - S-2000 Flange Bearing - Square in Trident Seal (Expansion)
Bearing Series - 22209
Shaft Size (inch) - 1.75
Part Name - F4S-S2-112RE

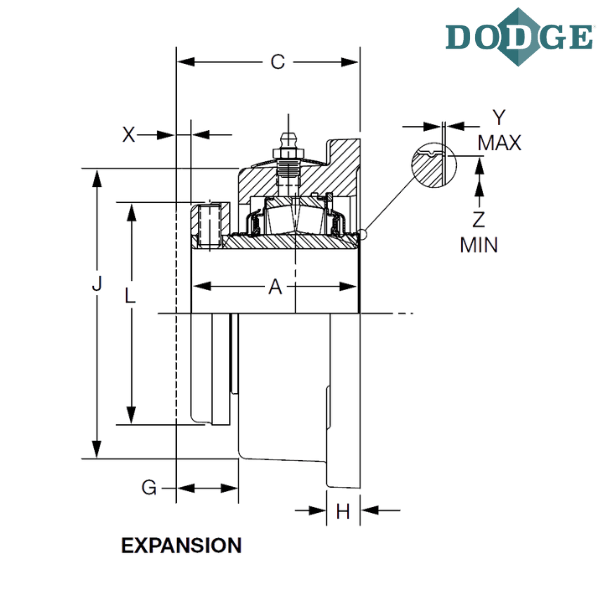

Length Through Bore (A) inch - 2.67
Overall Length (B) inch - 5.13
Thickness (C) inch - 2.97
Bolt Center to Center Length (D) inch - 3.89
F-Bolt Diameter (inch) - 0.5
G (inch) - 1.08
H (inch) - 0.5
J (inch) - 4.41
K (inch) - 5.5
L (inch) - 3.19
N (inch) - 2.78
Total Expansion (X) inch - 0.25
Y (inch) - 0.02
Z (inch) - 2.08
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4S - Flange Bearing 4-Bolt, Cast Iron, Square
S2 - S-2000
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are for representation purposes only
