070787 DODGE - WSTU-S2-203RE

Brand - DODGE
Item Number - 070787 DODGE - WSTU-S2-203RE
Category - S-2000 Wide Slot Take-Up Bearing in Trident Seal (Expansion)
Bearing Series - 22211
Shaft Size (inch) - 2.1875
Take-Up Frame - CP-408
Part Name - WSTU-S2-203RE

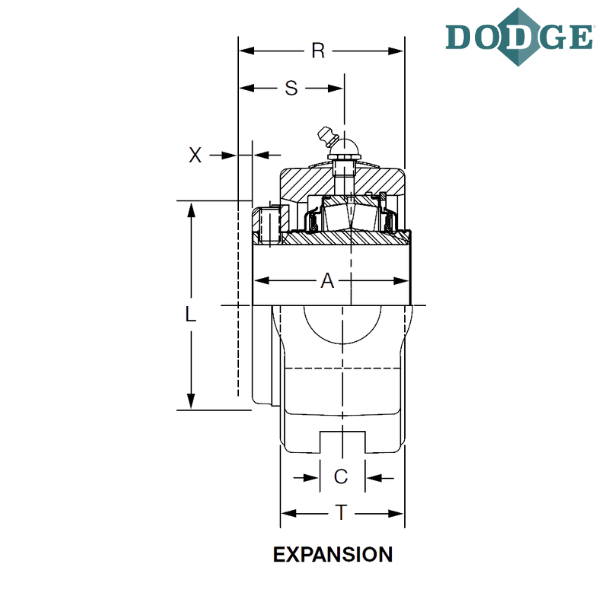

Length Through Bore (A) inch - 2.94
Overall Length (B) inch - 7.06
C (inch) - 0.81
D (inch) - 3.63
E (inch) - 4.63
F (inch) - 1.375
G (inch) - 0.94
H (inch) - 1.25
J (inch) - 3.88
K (inch) - 2.25
L (inch) - 3.75
M (inch) - 4.5
N (inch) - 5.25
R (inch) - 3.09
S (inch) - 1.98
T (inch) - 2.22
Total Expansion (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide Slot Take-Up Bearing For Use In Center-Pull Frames
S2 - S-2000
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are for representation purposes only
