070799 DODGE - WSTU-S2-407RE

Brand - DODGE
Item Number - 070799 DODGE - WSTU-S2-407RE
Category - S-2000 Wide Slot Take-Up Bearing in Trident Seal (Expansion)
Bearing Series - 22222
Shaft Size (inch) - 4.4375
Take-Up Frame - CP-908
Part Name - WSTU-S2-407RE

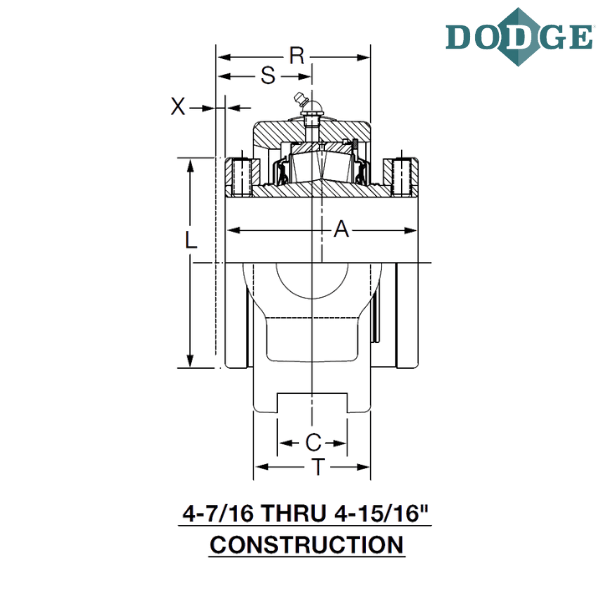

Length Through Bore (A) inch - 6.53
Overall Length (B) inch - 13.38
C (inch) - 2.06
D (inch) - 7
E (inch) - 8.75
F (inch) - 2.125
G (inch) - 2
H (inch) - 2.13
J (inch) - 6.78
K (inch) - 3.38
L (inch) - 6.45
M (inch) - 9.5
N (inch) - 10.33
R (inch) - 5.34
S (inch) - 3.47
T (inch) - 3.75
Total Expansion (X) inch - 0.375
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide Slot Take-Up Bearing For Use In Center-Pull Frames
S2 - S-2000
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are for representation purposes only
