070801 DODGE - WSTU-S2-415RE

Brand - DODGE
Item Number - 070801 DODGE - WSTU-S2-415RE
Category - S-2000 Wide Slot Take-Up Bearing in Trident Seal (Expansion)
Bearing Series - 22226
Shaft Size (inch) - 4.9375
Take-Up Frame - CP-1004
Part Name - WSTU-S2-415RE

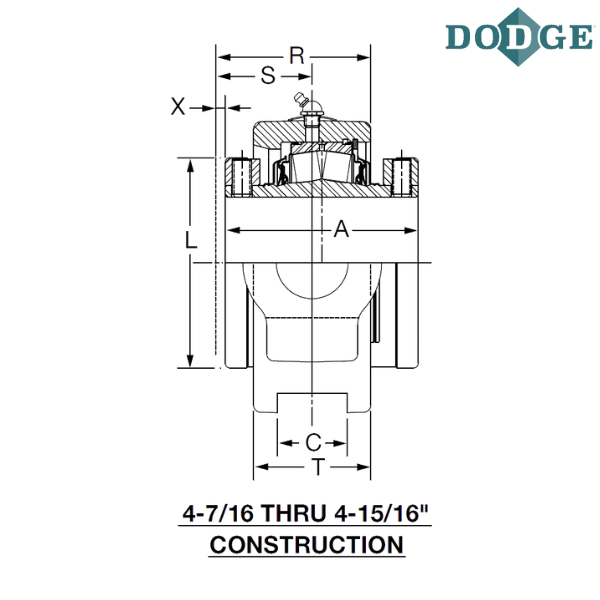

Length Through Bore (A) inch - 6.91
Overall Length (B) inch - 15.63
C (inch) - 2.06
D (inch) - 9
E (inch) - 10.31
F (inch) - 2.375
G (inch) - 2.5
H (inch) - 2.5
J (inch) - 7
K (inch) - 3.75
L (inch) - 7.45
M (inch) - 10.25
N (inch) - 11.25
R (inch) - 5.73
S (inch) - 3.64
T (inch) - 4.19
Total Expansion (X) inch - 0.375
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide Slot Take-Up Bearing For Use In Center-Pull Frames
S2 - S-2000
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are for representation purposes only
