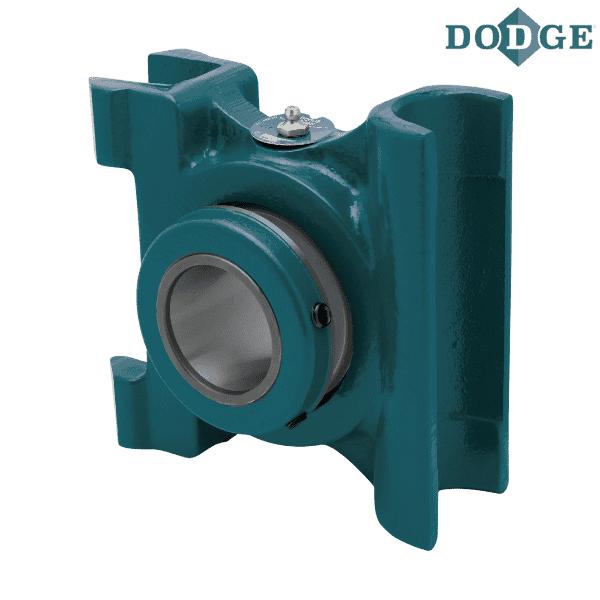

070819 DODGE - TPHU-S2-300R

Brand - DODGE
Item Number - 070819 DODGE - TPHU-S2-300R
Category - TPHU Take-Up Bearing in Trident Seal (Non-Expansion)
Bearing Inch - 22215
Shaft Size (inch) - 3
Take-Up Frame - TP40
Take-Up Frame - TPHU140
Part Name - TPHU-S2-300R

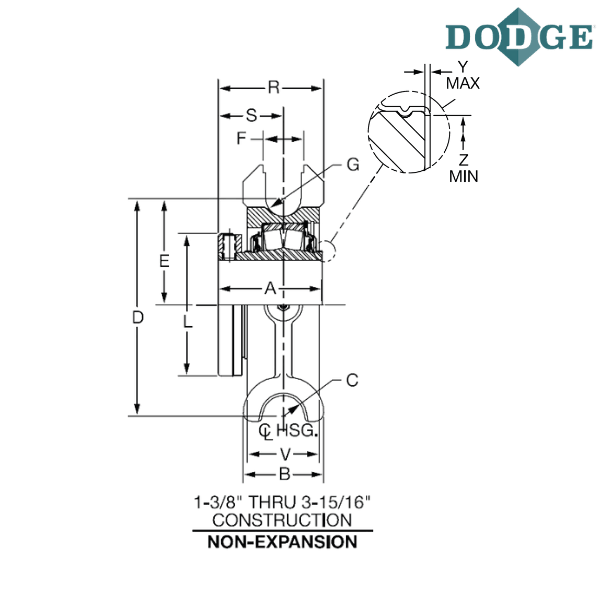

Length Through Bore (A) inch - 3.59
B (inch) - 2.75
C (inch) - 0.81
D (inch) - 7.13
E (inch) - 3.31
F (inch) - 1.44
G (inch) - 0.56

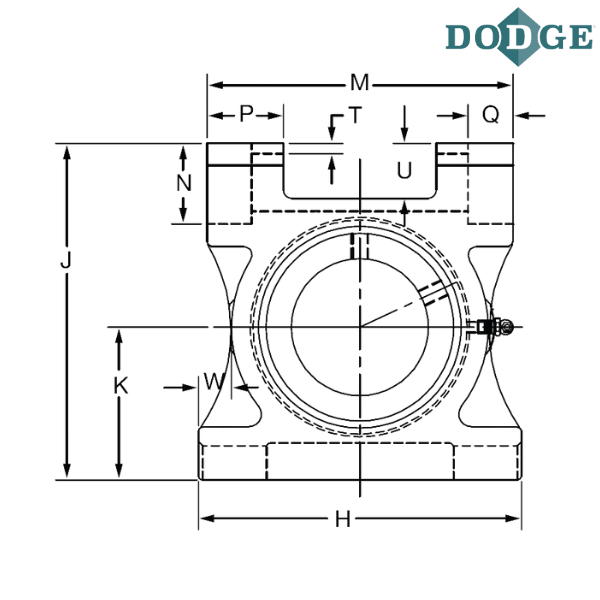

H (inch) - 8.5
J (inch) - 8.5
K (inch) - 4
L (inch) - 4.7
M (inch) - 8
N (inch) - 1.94
P (inch) - 1.75
Q (inch) - 1.06
R (inch) - 3.83
S (inch) - 2.45
T (inch) - 0.31
U (inch) - 1.5
V (inch) - 2.75
W (inch) - 1
Y (inch) - 0.025
Z (inch) - 3.47
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
TPHU - TPHU Take-up Bearing For Use In TPHU Or Top Angle Take-Up Frames
S2 - S-2000
R - TRIDENT Triple Lip Rubbing Seal

** Images are for representation purposes only
