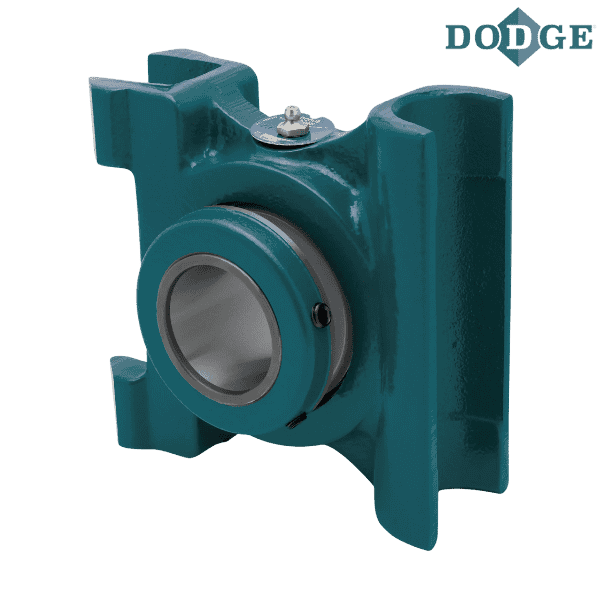

070821 DODGE - TPHU-S2-307R

Brand - DODGE
Item Number - 070821 DODGE - TPHU-S2-307R
Category - TPHU Take-Up Bearing in Trident Seal (Non-Expansion)
Bearing Inch - 22218
Shaft Size (inch) - 3.4375
Take-Up Frame - TP50
Take-Up Frame - TPHU150
Part Name - TPHU-S2-307R

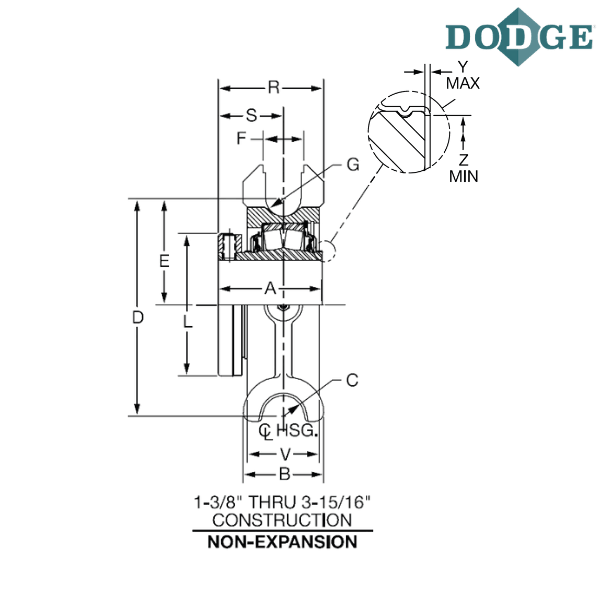

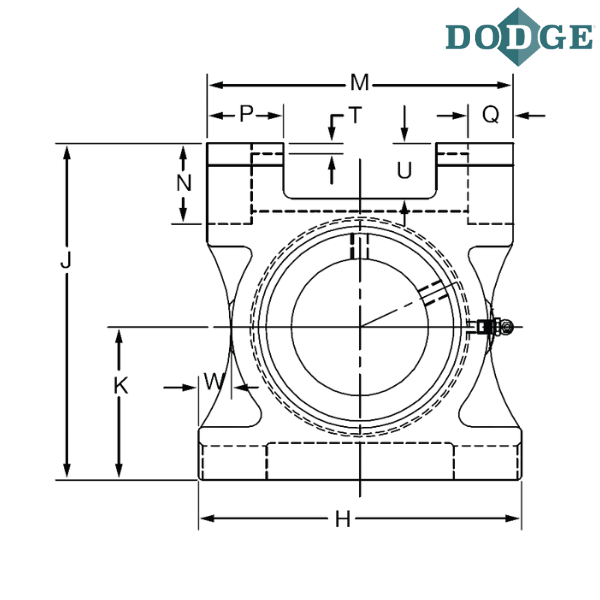

Length Through Bore (A) inch - 4
B (inch) - 3.13
C (inch) - 0.81
D (inch) - 8.41
E (inch) - 4.09
F (inch) - 1.56
G (inch) - 0.69
H (inch) - 9.5
J (inch) - 10.06
K (inch) - 4.5
L (inch) - 5.5
M (inch) - 9
N (inch) - 2.53
P (inch) - 2.25
Q (inch) - 1.31
R (inch) - 4.22
S (inch) - 2.66
T (inch) - 0.31
U (inch) - 1.78
V (inch) - 3.13
W (inch) - 0.97
Y (inch) - 0.025
Z (inch) - 4.05
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
TPHU - TPHU Take-up Bearing For Use In TPHU Or Top Angle Take-Up Frames
S2 - S-2000
R - TRIDENT Triple Lip Rubbing Seal

** Images are for representation purposes only
