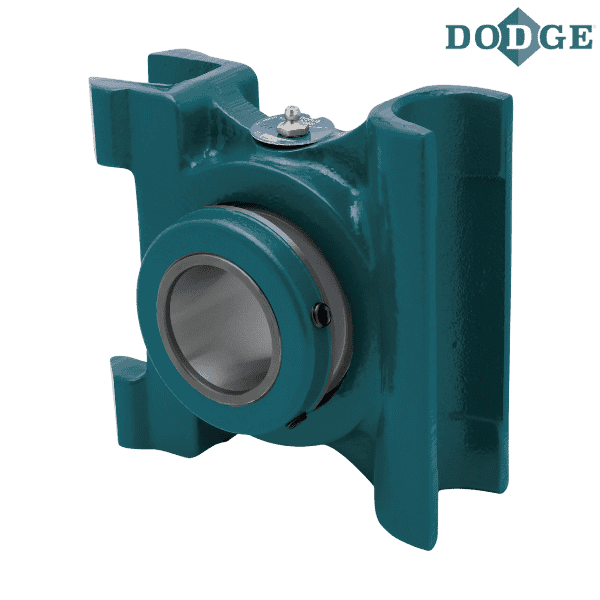

070841 DODGE - TPHU-S2-315RE

Brand - DODGE
Item Number - 070841 DODGE - TPHU-S2-315RE
Category - TPHU Take-Up Bearing in Trident Seal (Expansion)
Bearing Inch - 22220
Shaft Size (inch) - 3.9375
Take-Up Frame - TP60
Take-Up Frame - TPHU160
Part Name - TPHU-S2-315RE

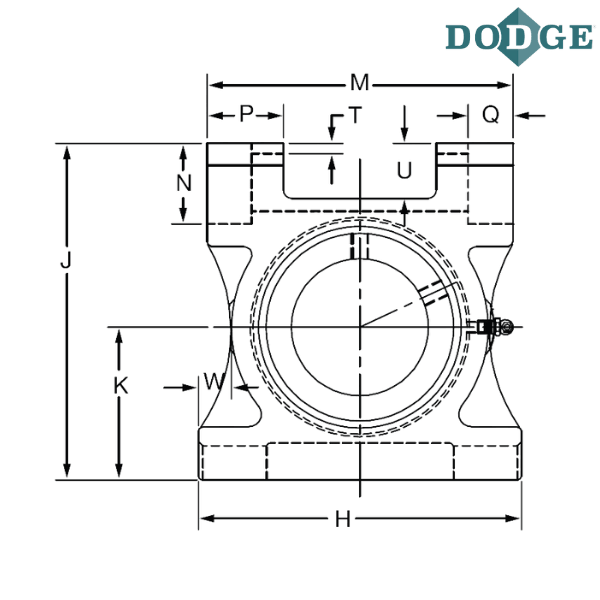

Length Through Bore (A) inch - 4.47
B (inch) - 3.13
C (inch) - 0.81
D (inch) - 9.25
E (inch) - 4.56
F (inch) - 1.56
G (inch) - 0.69
H (inch) - 11
J (inch) - 11.5
K (inch) - 5.5
L (inch) - 6
M (inch) - 10.5
N (inch) - 2.5
P (inch) - 2.31
Q (inch) - 1.31
R (inch) - 4.52
S (inch) - 2.95
T (inch) - 0.31
U (inch) - 2
V (inch) - 3.13
W (inch) - 1.25

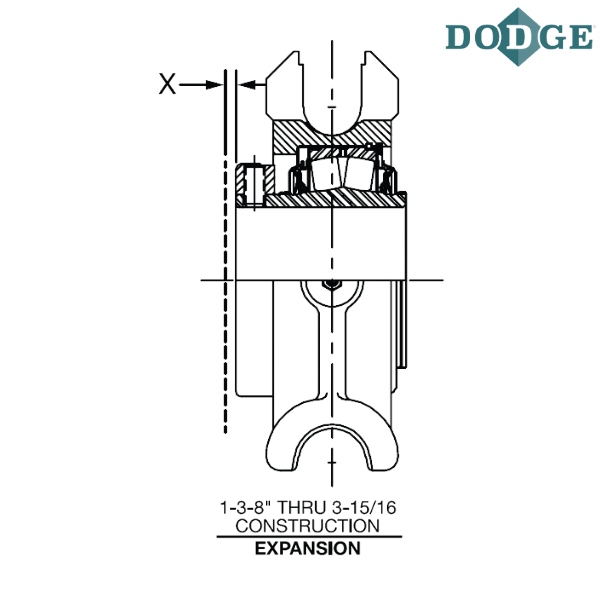

Total Exp. (X) inch - 0.31
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
TPHU - TPHU Take-up Bearing For Use In TPHU Or Top Angle Take-Up Frames
S2 - S-2000
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are for representation purposes only
