071188 DODGE - EP2B-IP-112LE

Brand - DODGE
Item Number - 071188 DODGE - EP2B-IP-112LE
Category - IMPERIAL - IP Pillow Block 2-Bolt with Type E Dimensions (Labyrinth Seal - Expansion)
Type - Push-Pull Adapter
Bearing - 22210
Shaft Size (inch) - 1.75
Part Name - EP2B-IP-112LE

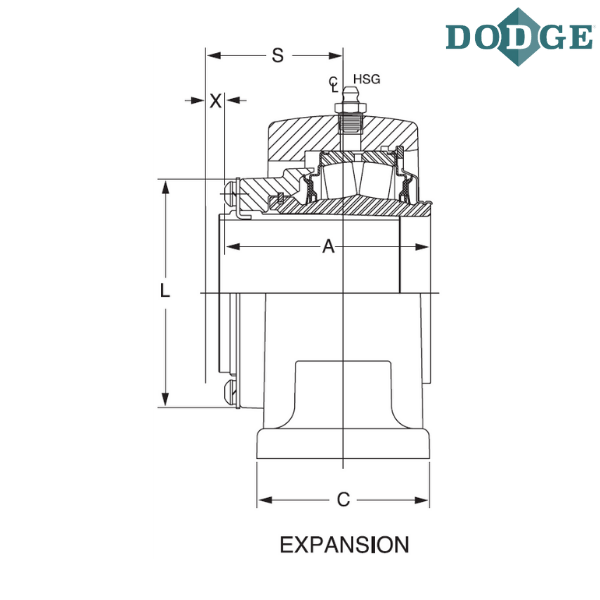

Length Through Bore (A) inch - 2.86
Overall Length (B) inch - 8.87
Width (C) inch - 2.49
Bolt to Bolt Minimum Distance (D min) inch - 6.88
Bolt to Bolt Maximum Distance (D max) inch - 7.12
F-Bolt Diameter (inch) - 0.625
G (inch) - 0.88
H (inch) - 1.31
Overall Height (J) inch - 4.47
L (inch) - 3.28
Base to Center Height (M) inch - 2.25
S (inch) - 1.76
Total Expansion (X) inch - 0.21875
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
E - prefix denotes Type E dimensioned housing
P2B - Pillow Block 2 Bolt Base
IP - IMPERIAL
L - Labyrinth Metallic Seal
E - Expansion Type Bearing

** Images are for representation purposes only
