071196 DODGE - EP2B-IP-211LE

Brand - DODGE
Item Number - 071196 DODGE - EP2B-IP-211LE
Category - IMPERIAL - IP Pillow Block 2-Bolt with Type E Dimensions (Labyrinth Seal - Expansion)
Type - Push-Pull Adapter
Bearing - 22215
Shaft Size (inch) - 2.6875
Part Name - EP2B-IP-211LE
Length Through Bore (A) inch - 3.5
Overall Length (B) inch - 12
Width (C) inch - 2.99
Bolt to Bolt Minimum Distance (D min) inch - 9.31
Bolt to Bolt Maximum Distance (D max) inch - 9.69
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.07
H (inch) - 1.88
Overall Height (J) inch - 6.32
L (inch) - 4.28
Base to Center Height (M) inch - 3.125
S (inch) - 2.15
Total Expansion (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
E - prefix denotes Type E dimensioned housing
P2B - Pillow Block 2 Bolt Base
IP - IMPERIAL
L - Labyrinth Metallic Seal
E - Expansion Type Bearing

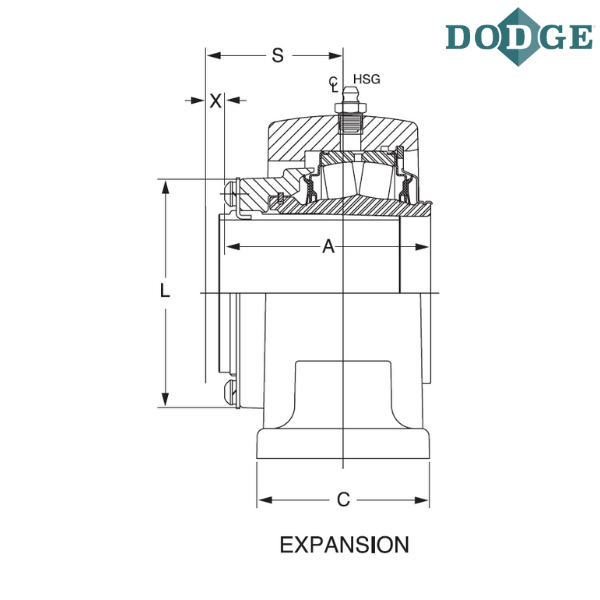

** Images are for representation purposes only
