071203 DODGE - EP2B-IP-308LE

Brand - DODGE
Item Number - 071203 DODGE - EP2B-IP-308LE
Category - IMPERIAL - IP Pillow Block 2-Bolt with Type E Dimensions (Labyrinth Seal - Expansion)
Type - Push-Pull Adapter
Bearing - 22218
Shaft Size (inch) - 3.5
Part Name - EP2B-IP-308LE

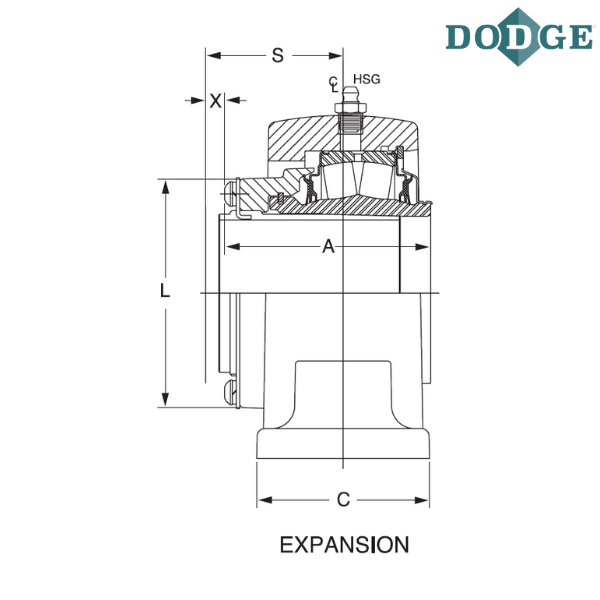

Length Through Bore (A) inch - 4.17
Overall Length (B) inch - 14
Width (C) inch - 3.49
Bolt to Bolt Minimum Distance (D min) inch - 10.81
Bolt to Bolt Maximum Distance (D max) inch - 11.19
F-Bolt Diameter (inch) - 0.875
G (inch) - 1.19
H (inch) - 2.25
Overall Height (J) inch - 7.69
L (inch) - 5
Base to Center Height (M) inch - 3.75
S (inch) - 2.66
Total Expansion (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
E - prefix denotes Type E dimensioned housing
P2B - Pillow Block 2 Bolt Base
IP - IMPERIAL
L - Labyrinth Metallic Seal
E - Expansion Type Bearing

** Images are for representation purposes only
