071254 DODGE - EP4B-IP-500L

Brand - DODGE
Item Number - 071254 DODGE - EP4B-IP-500L
Category - IMPERIAL - IP Pillow Block with Type E Dimensions (Labyrinth Seal - Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22226
Shaft Size (inch) - 5
Part Name - EP4B-IP-500L

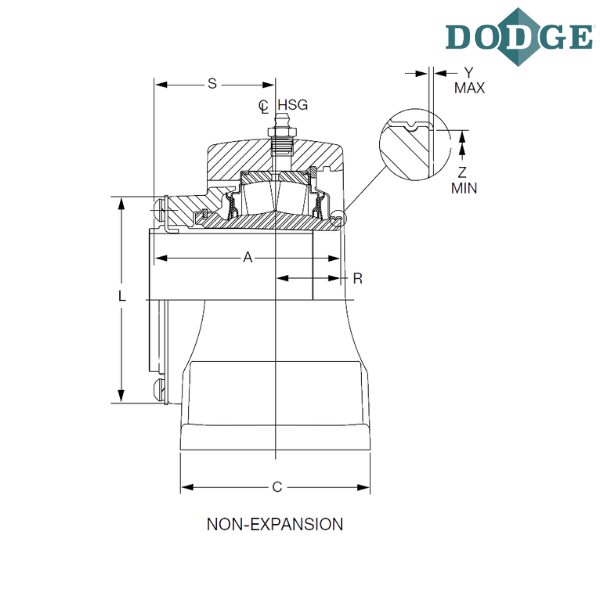

Length Through Bore (A) inch - 5.98
Overall Length (B) inch - 18.5
C (inch) - 5.13
Bolt to Bolt Minimum Distance (D min) inch - 15.25
Bolt to Bolt Maximum Distance (D max) inch - 15.75
E (inch) - 2.87
F-Bolt Diameter (inch) - 0.875
G (inch) - 1.25
H (inch) - 3
Overall Height (J) inch - 11.16
L (inch) - 7.63
Base to Center Height (M) inch - 5.5
R (inch) - 1.93
S (inch) - 4.05
Y (inch) - 0.04
Z (inch) - 5.84
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
E - prefix denotes Type E dimensioned housing
P4B - Pillow Block 4 Bolt Base
IP - IMPERIAL
L - Labyrinth Metallic Seal

** Images are for representation purposes only
