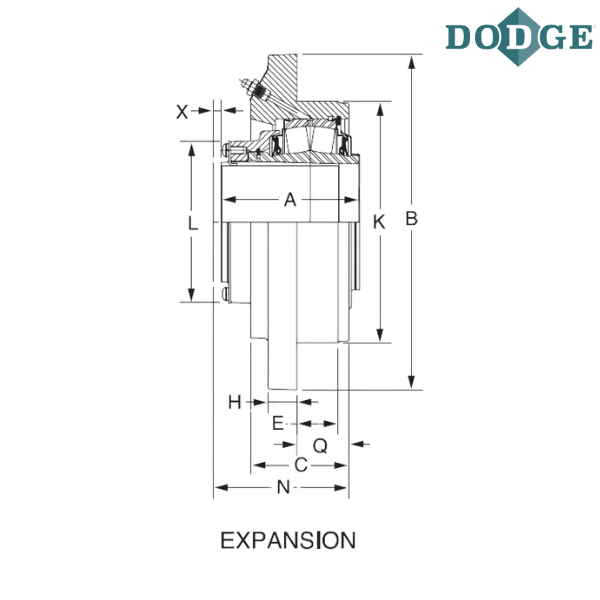

071287 DODGE - EFC-IP-500LE

Brand - DODGE
Item Number - 071287 DODGE - EFC-IP-500LE
Category - IMPERIAL - IP Piloted Flange with Type E Dimensions (Labyrinth Seal - Expansion)
Type - Push-Pull Adapter
Bearing - 22226
Shaft Size (inch) - 5
Part Name - EFC-IP-500LE
Length Through Bore (A) inch - 5.98
Overall Length (B) inch - 14.75
C (inch) - 4.88
Bolt to Bolt Distance (D) inch - 6.38
Bolt Circle (DD) inch - 12.75
E (inch) - 1.7
F-Bolt Diameter (inch) - 0.875**
H (inch) - 1.25
Pilot Diameter (K*) inch - 11
L (inch) - 7.63
M (inch) - 3/4-10
N (inch) - 6.41
Pilot Depth (Q) inch - 3.01
Total Expansion (X) inch - 0.375
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Piloted Flanged (Flanged Cartridge)
IP - IMPERIAL
L - Labyrinth Metallic Seal
E - Expansion Type Bearing

* +0.000”, -0.002”
** 6 equally spaced mounting holes

*** Images are for representation purposes only
