071304 DODGE - EF4B-IP-300R

Brand - DODGE
Item Number - 071304 DODGE - EF4B-IP-300R
Category - IMPERIAL - IP Flange - Square with Type E Dimensions (Trident Seal - Non-Expansion)
Type - Push-Pull Adapter
Bearing Series - 22215
Shaft Size (inch) - 3
Part Name - EF4B-IP-300R

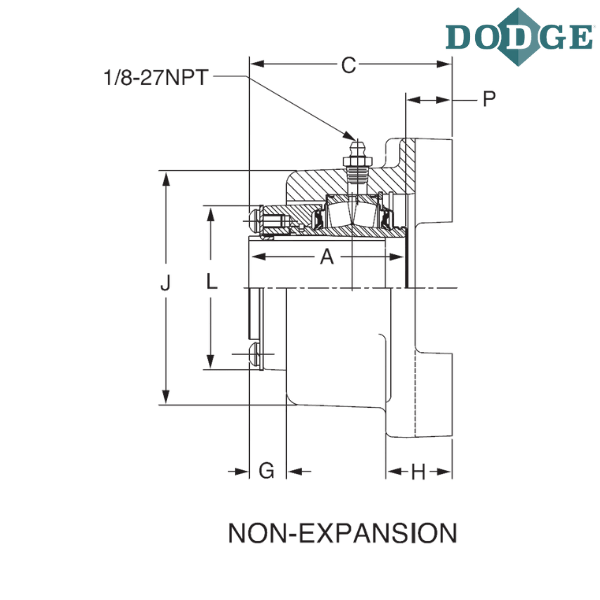

Length Through Bore (A) inch - 3.5
B (inch) - 7.75
C (inch) - 4.59
Bolt to Bolt Distance (D) inch - 6
Bolt Circle (DD) inch - 8.49
F-Bolt Diameter (inch) - 0.75
G (inch) - 0.79
H (inch) - 1.61
J (inch) - 6.3
L (inch) - 4.28
N (inch) - 3.58
P (inch) - 1.1
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
E - prefix denotes Type E dimension
F4B - 4 bolt flange
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

** Images are for representation purposes only
