071309 DODGE - EF4B-IP-315R

Brand - DODGE
Item Number - 071309 DODGE - EF4B-IP-315R
Category - IMPERIAL - IP Flange - Square with Type E Dimensions (Trident Seal - Non-Expansion)
Type - Push-Pull Adapter
Bearing Series - 22220
Shaft Size (inch) - 3.9375
Part Name - EF4B-IP-315R

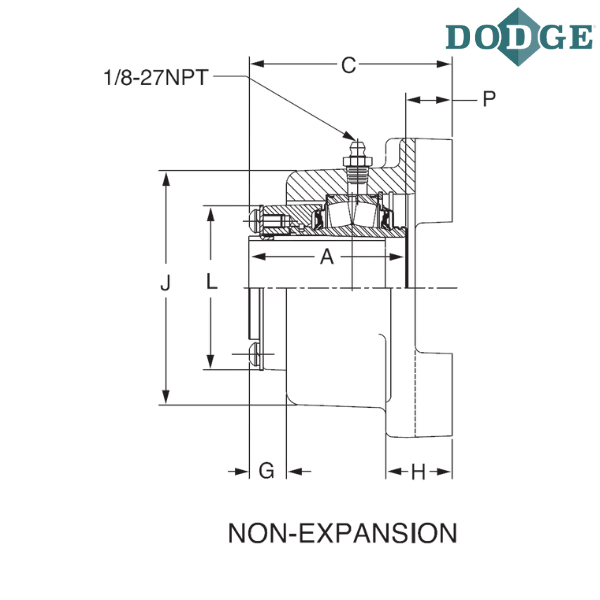

Length Through Bore (A) inch - 4.7
B (inch) - 10.25
C (inch) - 6.73
Bolt to Bolt Distance (D) inch - 7.75
Bolt Circle (DD) inch - 10.96
F-Bolt Diameter (inch) - 0.875
G (inch) - 1.22
H (inch) - 2.12
J (inch) - 8.27
L (inch) - 5.56
N (inch) - 4.58
P (inch) - 2.02
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
E - prefix denotes Type E dimension
F4B - 4 bolt flange
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

** Images are for representation purposes only
