071340 DODGE - EF4B-IP-108L

Brand - DODGE
Item Number - 071340 DODGE - EF4B-IP-108L
Category - IMPERIAL - IP Flange - Square with Type E Dimensions (Labyrinth Seal - Non-Expansion)
Type - Push-Pull Adapter
Bearing Series - 22209
Shaft Size (inch) - 1.5
Part Name - EF4B-IP-108L

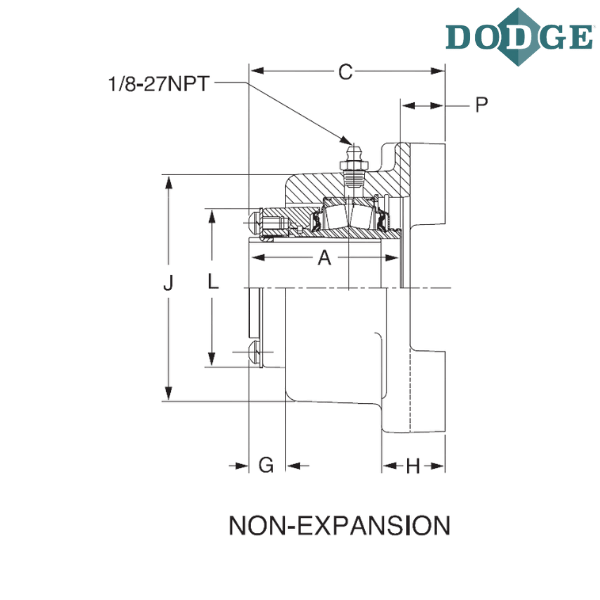

Length Through Bore (A) inch - 2.81
Overall Length (B) inch - 5.38
C (inch) - 3.64
Bolt to Bolt Distance (D) inch - 4.13
Bolt Circle (DD) inch - 5.83
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.67
H (inch) - 1.19
J (inch) - 4.18
L (inch) - 3
N (inch) - 2.5
P (inch) - 0.83
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
E - prefix denotes Type E dimension
F4B - 4 bolt flange
IP - IMPERIAL
L - Labyrinth Metallic Seal

** Images are for representation purposes only
