Brand - DODGE
Item Number - 071374 DODGE - EF4B-IP-204LE

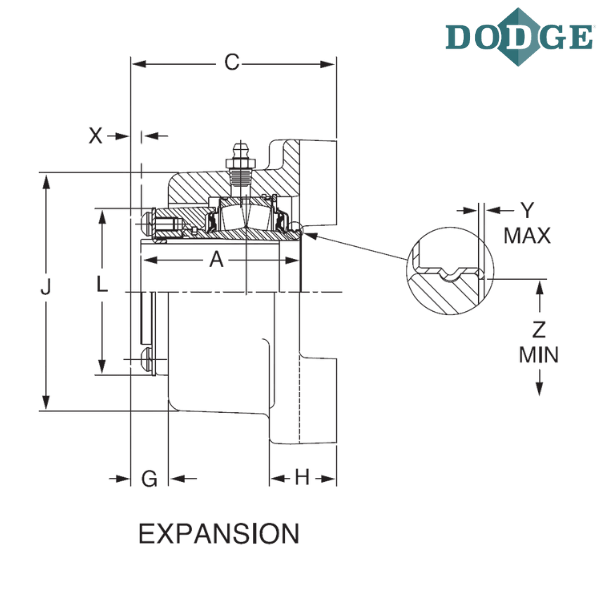

Category - IMPERIAL - IP Flange - Square with Type E Dimensions (Labyrinth Seal - Expansion)
Type - Push-Pull Adapter
Bearing Series - 22213
Shaft Size (inch) - 2.25
Part Name - EF4B-IP-204LE
Length Through Bore (A) inch - 3.42
B (inch) - 6.88
C (inch) - 4.41
Bolt to Bolt Distance (D) inch - 5.37
Bolt Circle (DD) inch - 7.6
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.04
H (inch) - 1.5
J (inch) - 5.81
L (inch) - 3.88
N (inch) - 3.32
Total Expansion (X) inch - 0.25
Y (inch) - 0.03
Z (inch) - 2.95
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
E - prefix denotes Type E dimension
F4B - 4 bolt flange
IP - IMPERIAL
L - Labyrinth Metallic Seal
E - Expansion Type Bearing
