071403 DODGE - EP2B-S2-115RE

Brand - DODGE
Item Number - 071403 DODGE - EP2B-S2-115RE
Category - 2-Bolt S-2000 Pillow Block with Type E Dimensions in Trident Seal (Expansion)
Bearing Series - 22210
Shaft Size (inch) - 1.9375
Part Name - EP2B-S2-115RE

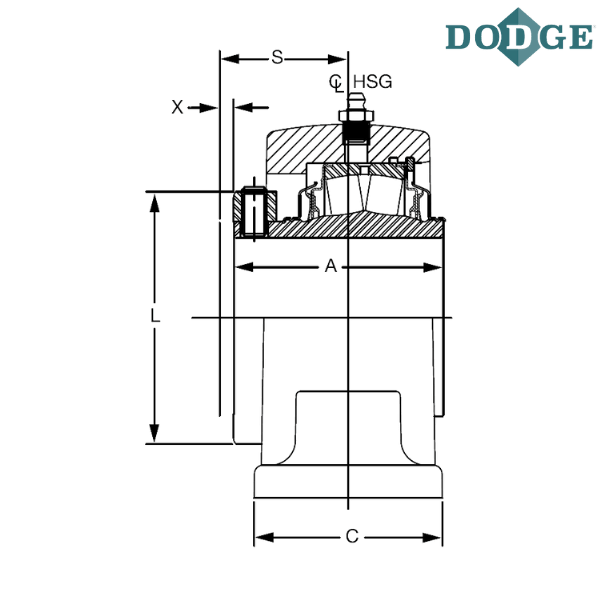

Length Through Bore (A) inch - 2.84
Overall Length (B) inch - 8.87
C (inch) - 2.49
Bolt to Bolt Minimum Distance (D min) inch - 6.88
Bolt to Bolt Maximum Distance (D max) inch - 7.12
F-Bolt Diameter (inch) - 0.625
G (inch) - 0.88
H (inch) - 1.31
Overall Height (J) inch - 4.47
L (inch) - 3.44
Base to Center Height (M) inch - 2.25
S (inch) - 1.76
Total Expansion (X) inch - 0.21875
Set Screw Size (inch) - 3/8-16
S/S Torque in/lbs - 290
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
E - “E” prefix denotes Type E dimensioned housing with S2000 spherical roller bearing insert
P2B - Pillow Block 2-Bolt Base, Cast Iron
S2 - S-2000
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are for representation purposes only
