071411 DODGE - EP2B-S2-106L

Brand - DODGE
Item Number - 071411 DODGE - EP2B-S2-106L
Category - 2-Bolt S-2000 Pillow Block with Type E Dimensions in Labyrinth Seal (Non-Expansion)
Bearing Series - 22208
Shaft Size (inch) - 1.375
Part Name - EP2B-S2-106L

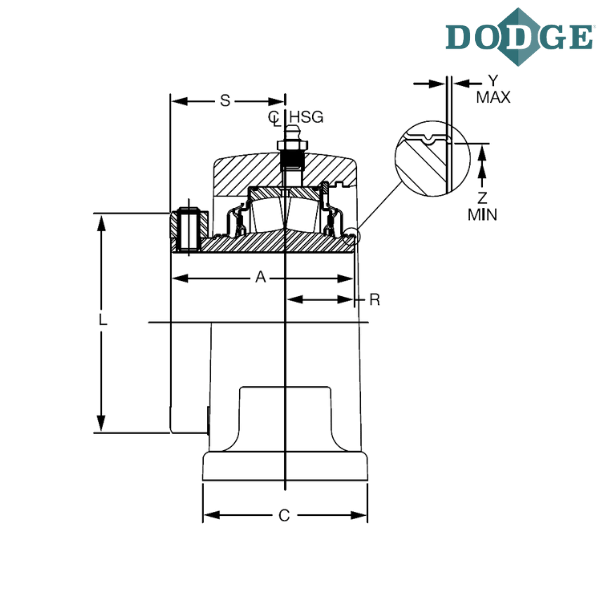

Length Through Bore (A) inch - 2.53
Overall Length (B) inch - 7.37
C (inch) - 2.12
Bolt to Bolt Minimum Distance (D min) inch - 5.63
Bolt to Bolt Maximum Distance (D max) inch - 5.88
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.75
H (inch) - 1.13
Overall Height (J) inch - 3.85
L (inch) - 2.55
Base to Center Height (M) inch - 1.88
R (inch) - 1.03
S (inch) - 1.5
Y (inch) - 0.02
Z (inch) - 1.8
Set Screw Size (inch) - 5/16-18
S/S Torque in/lbs - 165
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
E - “E” prefix denotes Type E dimensioned housing with S2000 spherical roller bearing insert
P2B - Pillow Block 2-Bolt Base, Cast Iron
S2 - S-2000
L - Labyrinth Metallic Seal

** Images are for representation purposes only
