071442 DODGE - EP4B-S2-211RE

Brand - DODGE
Item Number - 071442 DODGE - EP4B-S2-211RE
Category - 4-Bolt S-2000 Pillow Block with Type E Dimensions in Trident Seal (Expansion)
Bearing Series - 22215
Shaft Size (inch) - 2.6875
Part Name - EP4B-S2-211RE

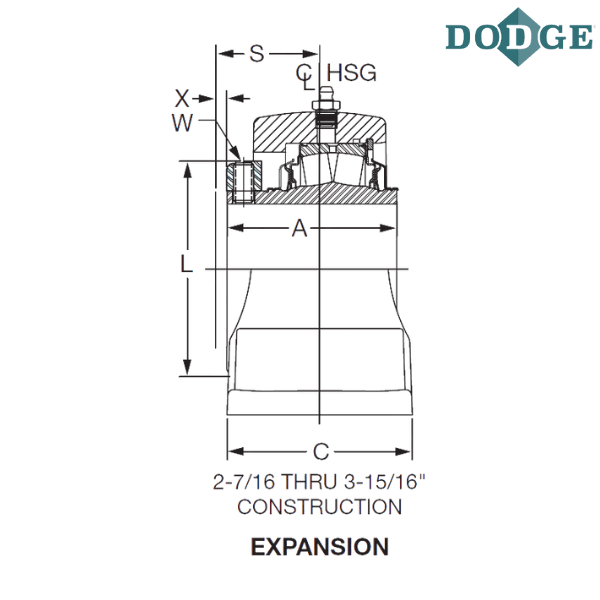

Length Through Bore (A) inch - 3.59
Overall Length (B) inch - 12
Width (C) inch - 4
Bolt to Bolt Minimum Distance (D min) inch - 9.18
Bolt to Bolt Maximum Distance (D max) inch - 9.82
E (inch) - 2.13
F-Bolt Diameter (inch) - 0.625
G (inch) - 1
H (inch) - 1.88
Overall Height (J) inch - 6.33
L (inch) - 4.61
Base to Center Height (M) inch - 3.13
S (inch) - 2.25
Total Expansion (X) inch - 0.25
Set Screw Size (inch) - 0.5
S/S Torque in/lbs - 620
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
E - “E” prefix denotes Type E dimensioned housing with S2000 spherical roller bearing insert
P4B - Pillow Block 4-Bolt Base, Cast Iron
S2 - S2000
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are for representation purposes only
