071681 DODGE - SP2B-IP-106RE

Brand - DODGE
Item Number - 071681 DODGE - SP2B-IP-106RE
Category - Steel IMPERIAL-HD Pillow Block 2-Bolt (Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 1.375
Description - SP2B-IP-106RE

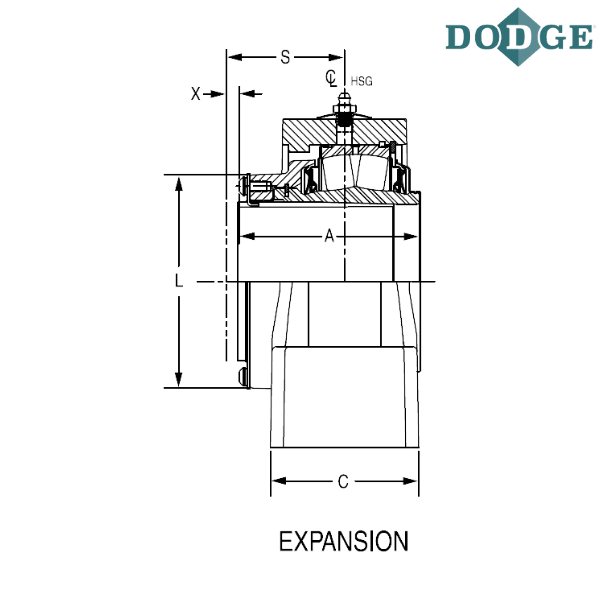

Length Through Bore (A) inch - 2.63
Overall Length (B) inch - 6.88
Width (C) inch - 2.25
Bolt to Bolt Minimum Distance (D min) inch - 4.69
Bolt to Bolt Maximum Distance (D max) inch - 6
F-Bolt Diameter (inch) - 0.5
G (inch) - 1.28
H (inch) - 1.13
Overall Height (J) inch - 3.88
L (inch) - 2.72
Base to Center Height (M) inch - 1.875
S (inch) - 1.77
Total Expansion (X) inch - 0.1875
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
P2B - Pillow Block 2 Bolt Base
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are for representation purposes only
