071727 DODGE - SP4B-IP-211RE

Brand - DODGE
Item Number - 071727 DODGE - SP4B-IP-211RE
Category - Steel IMPERIAL-HD Pillow Block 4-Bolt (Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 2.6875
Description - SP4B-IP-211RE

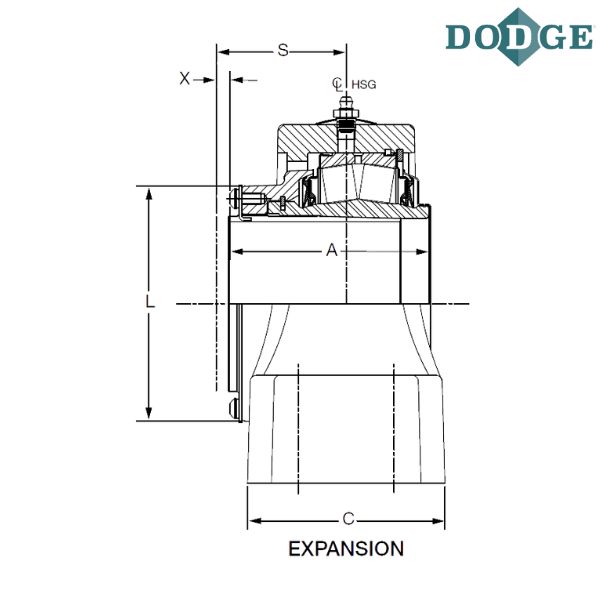

Length Through Bore (A) inch - 3. 50
Overall Length (B) inch - 10.44
Width (C) inch - 3.13
Bolt to Bolt Minimum Distance (D min) inch - 7.6
Bolt to Bolt Maximum Distance (D max) inch - 9.1
E (inch) - 1.88
F-Bolt Diameter (inch) - 0.625
G (inch) - 1. 43
H (inch) - 1.88
Overall Height (J) inch - 6. 44
L (inch) - 4. 28
Base to Center Height (M) inch - 3. 25
S (inch) - 2.37
Total Expansion (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
P4B - Pillow Block 4 Bolt Base
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are for representation purposes only
