071792 DODGE - SP2B-S2-108R

Brand - DODGE
Item Number - 071792 DODGE - SP2B-S2-108R
Category - 2-Bolt Steel S-2000-HD Pillow Block (Non-Expansion)
Shaft Size (inch) - 1.5
Description - SP2B-S2-108R

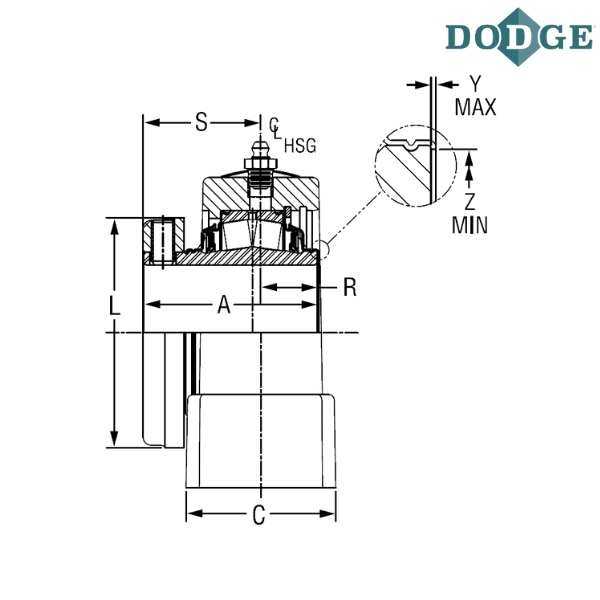

Length Through Bore (A) inch - 2.53
Overall Length (B) inch - 6.88
Width (C) inch - 2.25
Bolt to Bolt Minimum Distance (D min) inch - 4.69
Bolt to Bolt Maximum Distance (D max) inch - 6
F-Bolt Diameter (inch) - 0.5
G (inch) - 1.28
H (inch) - 1.13
Overall Height (J) inch - 3.88
L (inch) - 2.75
Base to Center Height (M) inch - 1.88
R (inch) - 0.86
S (inch) - 1.67
Y (inch) - 0.02
Z (inch) - 1.8
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - “S” prefix denotes cast steel housing
P2B - Pillow Block 2-Bolt Base, Cast Iron
S2 - S-2000
R - TRIDENT Triple Lip Rubbing Seal

** Images are for representation purposes only
