071837 DODGE - SP4B-S2-315RE

Brand - DODGE
Item Number - 071837 DODGE - SP4B-S2-315RE
Category - 4-Bolt Steel S-2000-HD Pillow Block (Expansion)
Shaft Size (inch) - 3.9375
Description - SP4B-S2-315RE

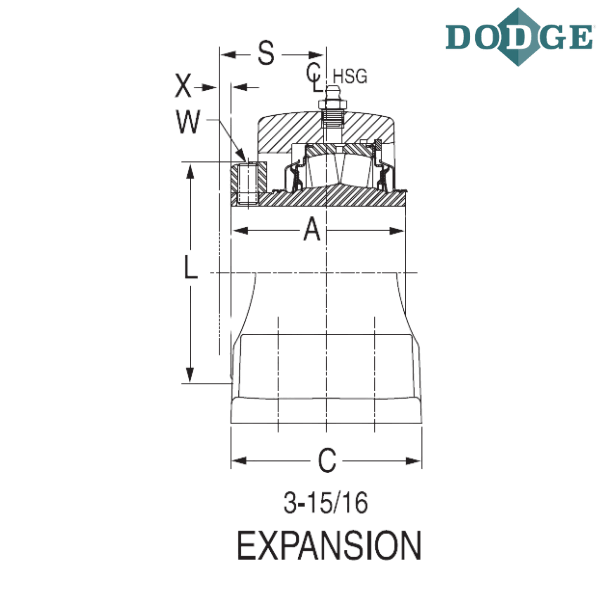

Length Through Bore (A) inch - 4.47
Overall Length (B) inch - 14.88
Width (C) inch - 4.31
Bolt to Bolt Minimum Distance (D min) inch - 10.88
Bolt to Bolt Maximum Distance (D max) inch - 13.38
E (inch) - 2.25
F-Bolt Diameter (inch) - 0.75
G (inch) - 2.13
H (inch) - 2.44
Overall Height (J) inch - 8.7
L (inch) - 6
Base to Center Height (M) inch - 4.25
S (inch) - 3.22
Total Expansion (X) inch - 0.3125
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - “S” prefix denotes cast steel housing
P4B - Pillow Block 4-Bolt Base, Cast Iron
S2 - S-2000
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are for representation purposes only
