071865 DODGE - SEP2B-IP-107R

Brand - DODGE
Item Number - 071865 DODGE - SEP2B-IP-107R
Category - Steel IMPERIAL-HD Pillow Block 2-Bolt with Type E Dimensions (Non-Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 1.4375
Description - SEP2B-IP-107R

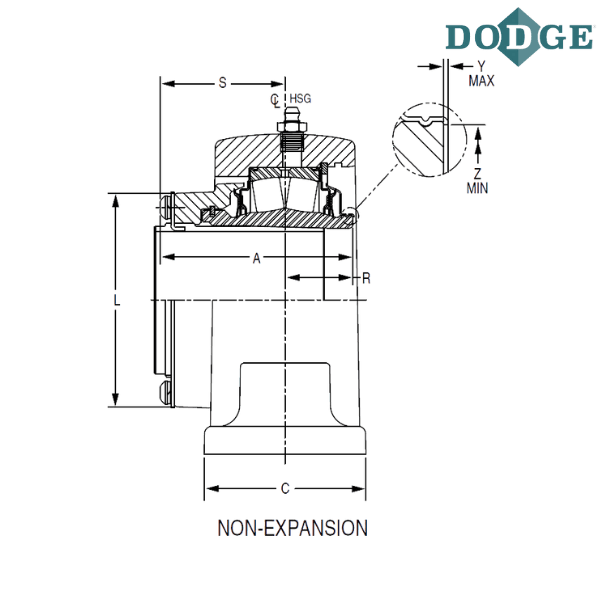

Length Through Bore (A) inch - 2.63
Overall Length (B) inch - 6.88
Width (C) inch - 2.25
Bolt to Bolt Minimum Distance (D min) inch - 4.69
Bolt to Bolt Maximum Distance (D max) inch - 5.88
F-Bolt Diameter (inch) - 0.5
G (inch) - 1.22
H (inch) - 1.13
Overall Height (J) inch - 3.84
L (inch) - 2.72
Base to Center Height (M) inch - 1.875
R (inch) - 1.04
S (inch) - 1.59
Y (inch) - 0.02
Z (inch) - 1.8
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
E - prefix denotes Type E dimensioned housing
P2B - Pillow Block 2 Bolt Base
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

** Images are for representation purposes only
