071867 DODGE - SEP2B-IP-110R

Brand - DODGE
Item Number - 071867 DODGE - SEP2B-IP-110R
Category - Steel IMPERIAL-HD Pillow Block 2-Bolt with Type E Dimensions (Non-Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 1.625
Description - SEP2B-IP-110R

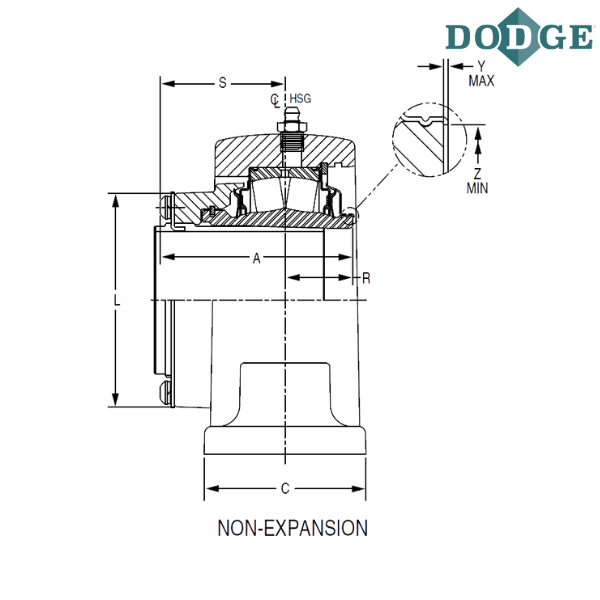

Length Through Bore (A) inch - 2.81
Overall Length (B) inch - 7.88
Width (C) inch - 2.38
Bolt to Bolt Minimum Distance (D min) inch - 5.7
Bolt to Bolt Maximum Distance (D max) inch - 6.5
F-Bolt Diameter (inch) - 0.5
G (inch) - 1.02
H (inch) - 1.25
Overall Height (J) inch - 4.26
L (inch) - 3
Base to Center Height (M) inch - 2.125
R (inch) - 0.96
S (inch) - 1.83
Y (inch) - 0.02
Z (inch) - 2.08
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
E - prefix denotes Type E dimensioned housing
P2B - Pillow Block 2 Bolt Base
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

** Images are for representation purposes only
