071942 DODGE - SEP2B-S2-111R

Brand - DODGE
Item Number - 071942 DODGE - SEP2B-S2-111R
Category - 2-Bolt Steel S-2000-HD Pillow Block With Type E Dimensions (Non-Expansion)
Shaft Size (inch) - 1.6875
Description - SEP2B-S2-111R

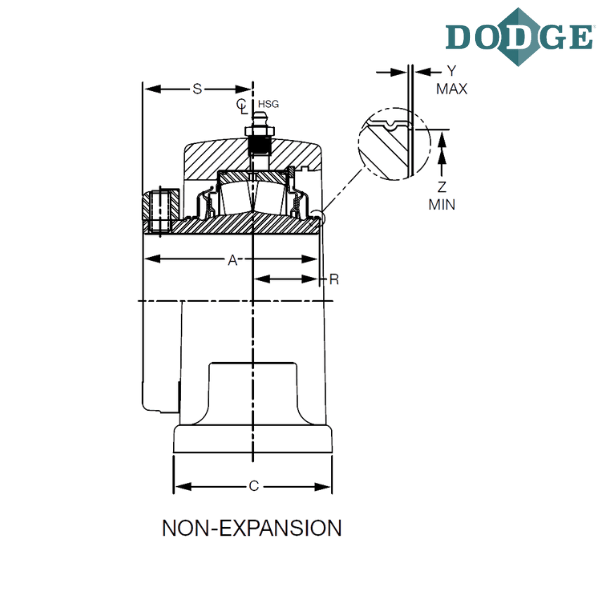

Length Through Bore (A) inch - 2.67
Overall Length (B) inch - 7.88
Width (C) inch - 2.38
Bolt to Bolt Minimum Distance (D min) inch - 5.7
Bolt to Bolt Maximum Distance (D max) inch - 6.5
F-Bolt Diameter (inch) - 0.5
G (inch) - 1.02
H (inch) - 1.25
Overall Height (J) inch - 4.26
Base to Center Height (M) inch - 2.13
R (inch) - 0.98
S (inch) - 1.69
Y (inch) - 0.02
Z (inch) - 2.08
Set Screw Size (inch) - 5/16-18
S/S Torque in/lbs - 165
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - “S” prefix denotes cast steel housing
E - “E” prefix denotes Type E dimensioned housing with S2000 spherical roller bearing insert
P2B - Pillow Block 2-Bolt Base, Cast Iron
S2 - S-2000
R - TRIDENT Triple Lip Rubbing Seal

** Images are for representation purposes only
