071946 DODGE - SEP2B-S2-207R

Brand - DODGE
Item Number - 071946 DODGE - SEP2B-S2-207R
Category - 2-Bolt Steel S-2000-HD Pillow Block With Type E Dimensions (Non-Expansion)
Shaft Size (inch) - 2.4375
Description - SEP2B-S2-207R

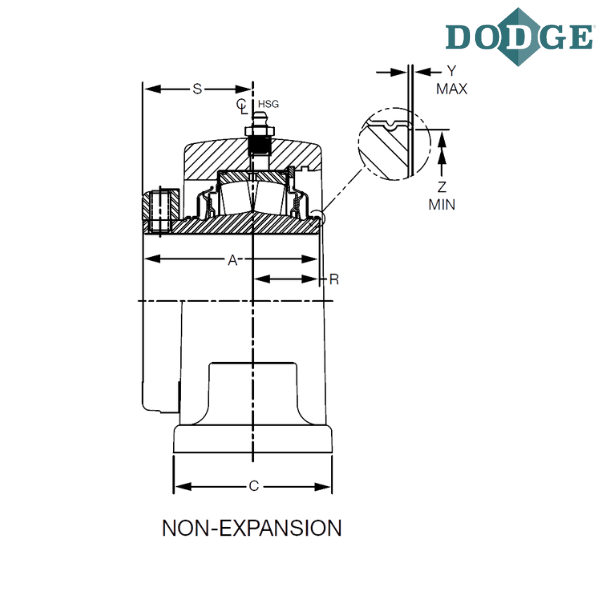

Length Through Bore (A) inch - 3.2
Overall Length (B) inch - 10.25
Width (C) inch - 2.9
Bolt to Bolt Minimum Distance (D min) inch - 6.88
Bolt to Bolt Maximum Distance (D max) inch - 8.62
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.63
H (inch) - 1.63
Overall Height (J) inch - 5.71
Base to Center Height (M) inch - 2.75
R (inch) - 1.2
S (inch) - 2
Y (inch) - 0.025
Z (inch) - 2.95
Set Screw Size (inch) - 3/8-16
S/S Torque in/lbs - 290
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - “S” prefix denotes cast steel housing
E - “E” prefix denotes Type E dimensioned housing with S2000 spherical roller bearing insert
P2B - Pillow Block 2-Bolt Base, Cast Iron
S2 - S-2000
R - TRIDENT Triple Lip Rubbing Seal

** Images are for representation purposes only
