071949 DODGE - SEP2B-S2-300R

Brand - DODGE
Item Number - 071949 DODGE - SEP2B-S2-300R
Category - 2-Bolt Steel S-2000-HD Pillow Block With Type E Dimensions (Non-Expansion)
Shaft Size (inch) - 3
Description - SEP2B-S2-300R

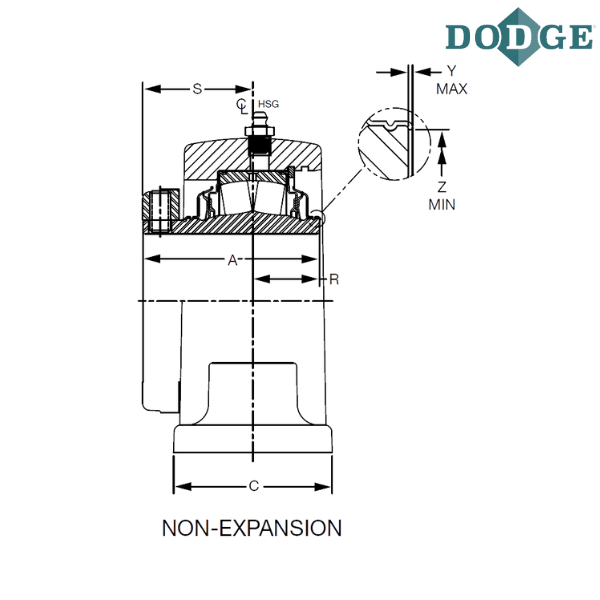

Length Through Bore (A) inch - 3.59
Overall Length (B) inch - 11.63
Width (C) inch - 2.91
Bolt to Bolt Minimum Distance (D min) inch - 7.88
Bolt to Bolt Maximum Distance (D max) inch - 9.62
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.75
H (inch) - 1.88
Overall Height (J) inch - 6.32
Base to Center Height (M) inch - 3.13
R (inch) - 1.34
S (inch) - 2.25
Y (inch) - 0.025
Z (inch) - 3.47
Set Screw Size (inch) - 1/2-13
S/S Torque in/lbs - 620
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - “S” prefix denotes cast steel housing
E - “E” prefix denotes Type E dimensioned housing with S2000 spherical roller bearing insert
P2B - Pillow Block 2-Bolt Base, Cast Iron
S2 - S-2000
R - TRIDENT Triple Lip Rubbing Seal

** Images are for representation purposes only
