072197 DODGE - SF4S-IP-400R

Brand - DODGE
Item Number - 072197 DODGE - SF4S-IP-400R
Category - Steel IMPERIAL-HD Flange - 4 Bolt (Non-Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 4
Description - SF4S-IP-400R

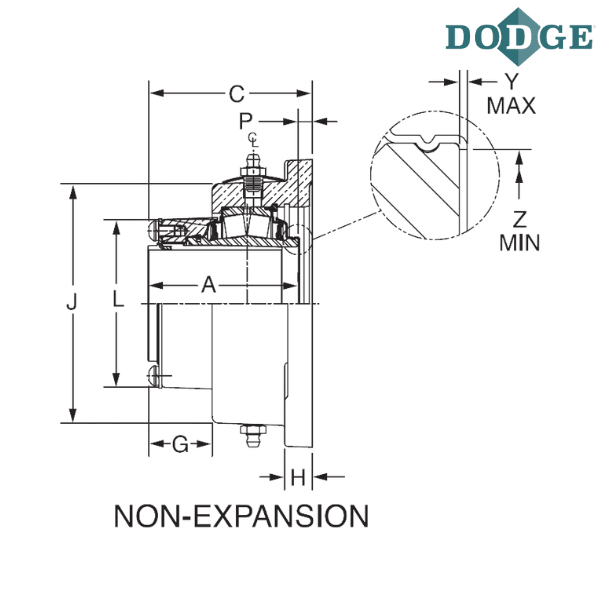

Length Through Bore (A) inch - 4.7
Overall Length (B) inch - 9.49
C (inch) - 5.07
Bolt to Bolt Distance (D) inch - 7.6
Bolt Diameter (F) inch - 1
G (inch) - 1.06
H (inch) - 1.5
J (inch) - 8.22
K (inch) - 10.75
L (inch) - 5.46
N (inch) - 4.55
P (inch) - 0.37
Y (inch) - 0.03
Z (inch) - 4.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
F4S - Flange Bearing 4 Bolt Base, Square
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

** Images are for representation purposes only
