072222 DODGE - SF4S-IP-308RE

Brand - DODGE
Item Number - 072222 DODGE - SF4S-IP-308RE
Category - Steel IMPERIAL-HD Flange - 4 Bolt (Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 3.5
Description - SF4S-IP-308RE

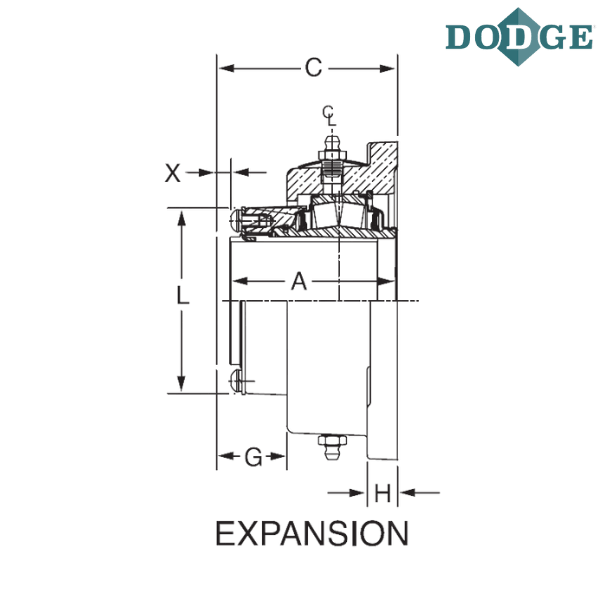

Length Through Bore (A) inch - 4.17
Overall Length (B) inch - 8.37
C (inch) - 4.27
Bolt to Bolt Distance (D) inch - 6.72
F-Bolt Diameter (inch) - 0.75
G (inch) - 0.94
H (inch) - 1.28
J (inch) - 7.49
K (inch) - 9.5
L (inch) - 5
N (inch) - 4.16
Total Expansion (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
F4S - Flange Bearing 4 Bolt Base, Square
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are for representation purposes only
