072223 DODGE - SF4S-IP-311RE

Brand - DODGE
Item Number - 072223 DODGE - SF4S-IP-311RE
Category - Steel IMPERIAL-HD Flange - 4 Bolt (Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 3.6875
Description - SF4S-IP-311RE

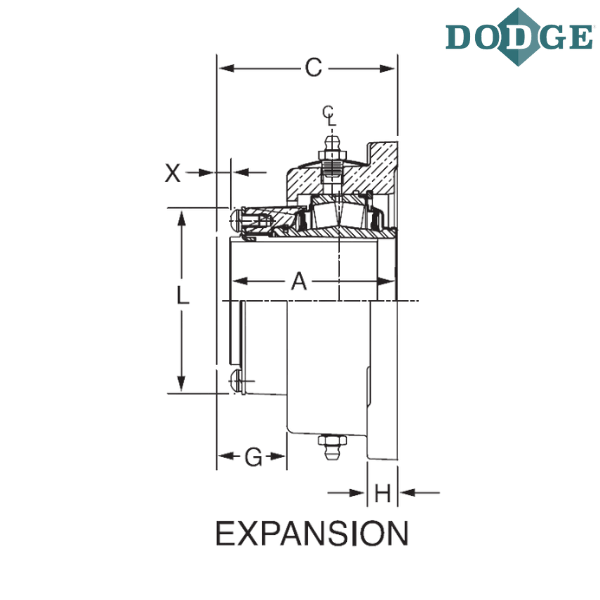

Length Through Bore (A) inch - 4.7
Overall Length (B) inch - 9.49
C (inch) - 5.07
Bolt to Bolt Distance (D) inch - 7.6
F-Bolt Diameter (inch) - 1
G (inch) - 1.06
H (inch) - 1.5
J (inch) - 8.22
K (inch) - 10.75
L (inch) - 5.46
N (inch) - 4.55
Total Expansion (X) inch - 0.3125
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
F4S - Flange Bearing 4 Bolt Base, Square
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing

** Images are for representation purposes only
