072242 DODGE - SEF4B-IP-300R

Brand - DODGE
Item Number - 072242 DODGE - SEF4B-IP-300R
Category - Steel IMPERIAL-HD Flange 4 Bolt With Type E Dimensions (Non-Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 3
Description - SEF4B-IP-300R

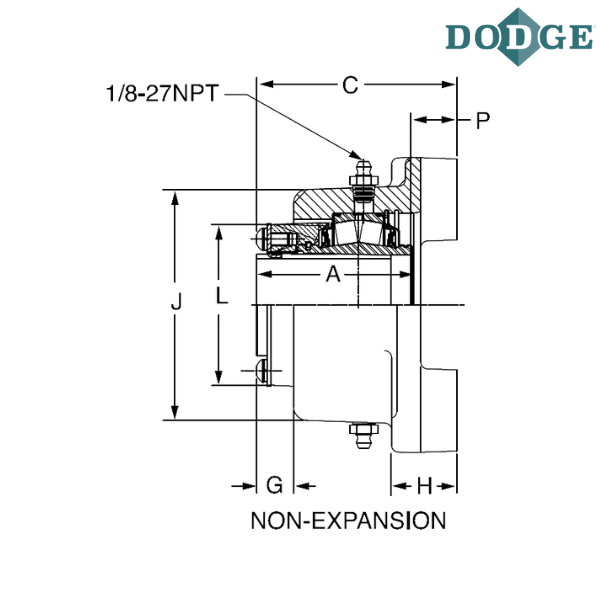

Length Through Bore (A) inch - 3.5
Overall Length (B) inch - 7.43
C (inch) - 3.77
Bolt to Bolt Distance (D) inch - 6
Bolt Circle (DD) inch - 8.49
Bolt Diameter (F) inch - 0.75
G (inch) - 0.94
H (inch) - 1.06
J (inch) - 6.66
L (inch) - 4.2
N (inch) - 3.75
P (inch) - 0.27
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
S - prefix denotes steel housing “HD” series
E - prefix denotes Type E dimension
F4B - 4 bolt flange
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal

** Images are for representation purposes only
